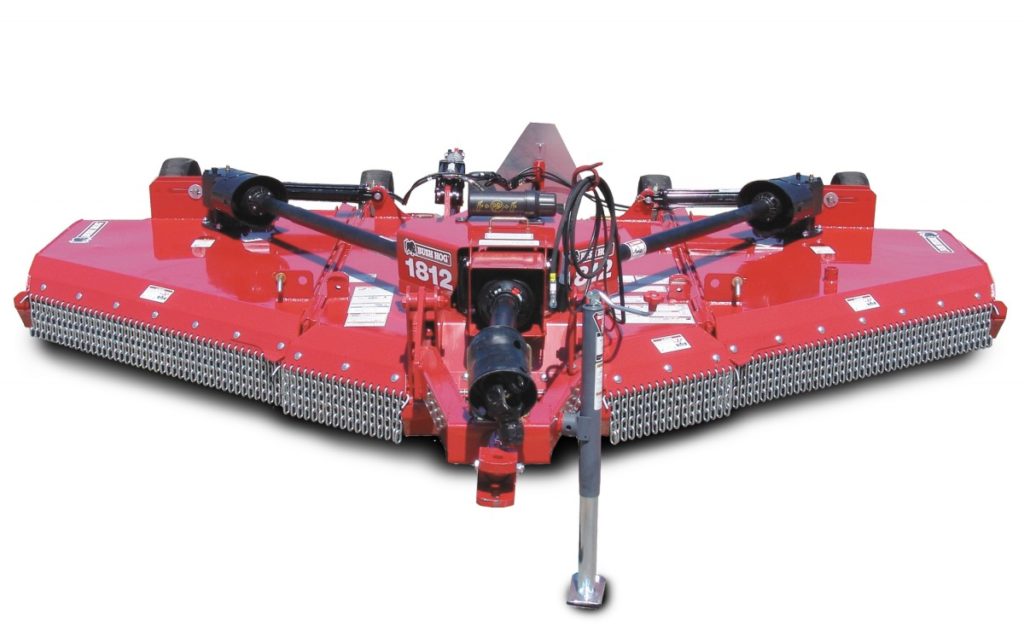

1812 Flex-Wing Rotary Cutter

The 1812 Flex-Wing Rotary Cutter is designed for small tractors with a PTO horsepower of 50 to 75. The narrow cutting width of 12-feet makes this Flex-Wing ideal for rolling terrain where a wide rigid cutter will not perform as well. Grass, weeds, and brush up to 1 1/2-inch diameter are no match for the hardened parallel uplift blades. The narrow width is also ideal for orchards with prunings that must be cut into smaller pieces. The 1812 has maintenance friendly features, E-Z cleaning decks, high performance cutting and distribution, and it is built Bush Hog® tough for years of reliable service.

Features

Performance Features
  • E-Z clean smooth decks are on the center and wings.
  • Wing “free float” without movement of wing hydraulic cylinder rod extends cylinder life.
  • Gearbox oil sight gauge allows the checking of the oil level in a few seconds.
  • PTO driveline holder is standard.
  • Wheel spindles are in halves for economy and ease of maintenance.
  • A single hydraulic hose is standard for lifting. Two hoses are optional for lifting wings independently of center section.
Construction Features
  • Center section cushions are at each axle arm to absorb shocks near the wheels.
  • Replaceable full length sideband skids give maximum protection and strength to the sideband.
  • Wheel hub cap retainers are standard to prevent loss of cap and hub grease.

Safety Features

  • Safety lights for highway travel are standard.
Product Features
  • Full Length Sideband Skids
  • Each axle arm on the center section has a rubber cushion to absorb the shock loads near the wheels. Shown with optional dual tires on the center.
  • Patented oil sight gauge in all three cutting gearboxes for quick and easy monitoring of oil levels.

Specifications

Cutting Width: 12-feet
Cutting Height: 2-inches to 12-inches
Hitch: Cast Clevis
Tongue Weight: 1,086-lbs.
Estimated Total Weight: 3,278-lbs.
Tractor H Range@ PTO: 50 to 75
Side Band: 1/4-inch x 10-inches
Blades: 1/2-inch x 3-inches Hi-Uplift
Blade Holder: Oval Pan
PTO Drivelines: ASAE Cat 4
Center & Wing Drivelines: ASAE Cat 3
Wing Flex: 22° Down to 87° up
Wing Free Float: 22° down to 25° up
Splitter Gearbox Rating: 160 HP
Cutting Gearbox Rating: 65 HP
Gearbox Oil Sight Gauge: Standard
Gearbox Warranty: 5 Years
Blade Tip Speed @ 540 pto: 14,464 FPM Center/13,930 Wings
Cutting Capacity: 1 1/2-inch
Decks: 10-gauge
Axle Pivot Points: Bushings With Grease Fittings
Axle Cushions, Center Section: Rubber Bumper Near Each Wheel
Wing Adjustments: Turnbuckle
Safety Tow Chain: Standard
Highway Safety Lights: Standard
Warranty: 1-year limited warranty; 5-years limited warranty on gearboxes.
