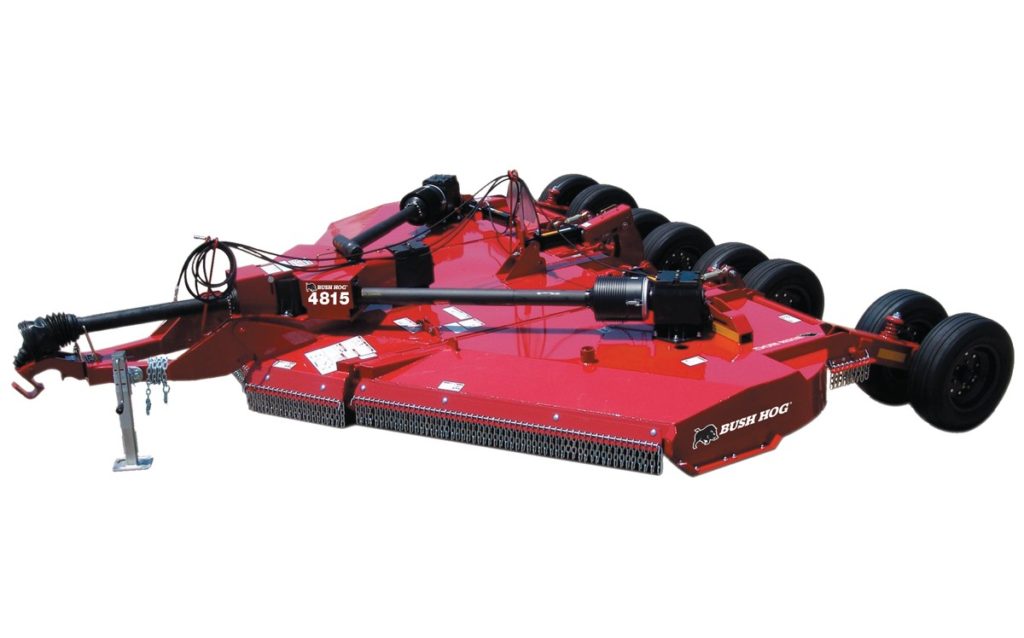

4815 Series Flex-Wing

THE EXTREME HEAVY DUTY 4815 is the toughest Bush Hog® built Flex-Wing. Built for the roughest and toughest use, the 4815 is for those users who require the strongest 15 ft. Flex-Wing. The roughest right of way or agricultural cutting is no challenge for this unit that’s built to take the ground pounding heavy use every day! See the back page for specifications and features that set the 4815 above all other 15 ft. Flex-Wings regardless of brand. Bush Hog® – Performance You Can Count On.

Features

Construction Features
  • Heavy structure on center section and wings.
  • Wing skids are 3/8” thick with an outside angle of 45 degrees to stop “ground dig-in” during turns.
  • All axle spindles are half shafts for quick and less costly maintenance.
  • Center section blades align closely with outside center tires to closely cut out the bottom of ditches.
  • Grease fittings and spring steel bushings are at axle pivot points for longer life.
  • Each cutting gearbox has a 3 inch output shaft with more and deeper splines than competitor models for maximum torque load capabilities.
  • All drivelines are EZ lube with grease points aligned and the cross bearing fitting is in the end cap.

Safety Features

  • Highway Safety Lights Standard

Specifications

Model 4815
Transport Height 7 ft., 3 in.
Splitter Gearbox 250 H.P.
Gear Box Warranty 6 years
Transport Width 8 ft., 2 in.
Cutting Gearbox 225 H.P.
Cutting Width 15 ft.
Cutting Height 2 in. to 14 in.
Cutting Capacity 4.5 in. diameter
Blade Tip Speed 16,000 FPM
Hitch Perm-level or ball type
Minimum Tractor PTO 70 H.P.
Top Deck Center Section 11 ga.
Side Band 1/4 in. x 12 in.
Bottom Deck Center Section 7 ga.
Deck, Wings 7 ga.
Blades 1/2 in. x 4 in.
PTO Drivelines ASAE Cat 6
Wing Drivelines ASAE Cat 5
Wing Adjustment Turnbuckles
Wing Flex 22° down / 87° up
Wing Fee Float 22° down / 45° up
Axle Cushions Springs at each wheel
Safety Tow Chain Standard
Highway Safety Lights Standard
