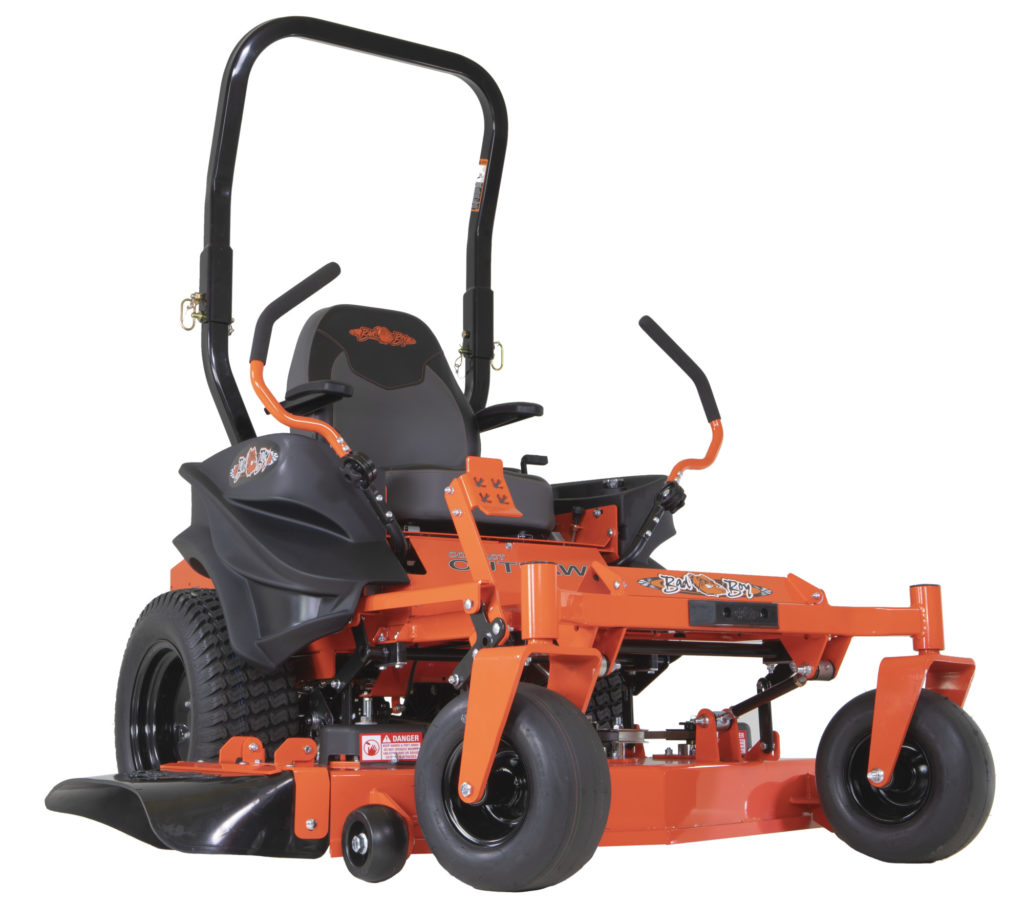

Compact Outlaw
THE NEW TOP DOG IS A BREED APART FROM THE ORDINARY
This popular zero-turn shares the same tough features as other Bad Boy Mowers, with a narrower side-to-side profile that lets it slip into areas that might otherwise be too tight to get to. This gate-entering mower can get in and out of most anywhere, leaving behind a great cut like only a Bad Boy Mower can.
From front to back, it shares the same features such as our 2˝ x 2˝ all-steel rail frame, powerful engine options and great price with a side-to-side profile that lets it slip into areas that might otherwise be too tight to get to. There’s virtually no area this versatile mower can’t get in and out of quickly and efficiently.
MOWER SPECIFICATIONS |
|
|---|---|
| Cutting Width | 4200 – 42″; 4800 – 48″ |
| Cutting Height | 1.5″ – 4.5″ with Deck Height Control System |
| Blades | 4200 – 7/32″ x 2 1/2″ x 14 1/2″, High Lift, Heat Treated 4800 – 1/4″ x 2 1/2″ x 16 1/2″, High Lift, Heat Treated |
| Lift and Height Adjustment | Foot-Assist Manual lift with Dial-Style height adjustment. Optional electric lift |
| Blade Belt | Single V-Belt Spring Tension |
| Anti-Scalp Rollers | 4200 – 4 Total 4800 – 4 Total (2 Front, 2 Rear) |
| Deck Flotation | Floats On Four 1/4″ Deck Hangers |
| Deck Thickness | 3/16″ Thick Solid Steel |
DRIVE SYSTEM SPECIFICATIONS |
|
|---|---|
| Transmission | Industrial Grade Dual Integrated Hydrostatic Transaxle |
| Pump Drive | Integrated Axial Piston Pump & Motor w/Planetary Gear Reduction |
| Wheel Drive | Hydro-Gear® Integrated ZT-3400 Series Transaxle |
| Hydrostatic System Oil | 20W50 Motor Oil |
| Hydraulic Filter | Internal, Replaceable, 1 Per Axle |
| Pumps | Hydro-Gear® 12cc Pump |
| Hydraulic Coolers | 9″ 3,600RPM Cooling Fan; One per unit |
MOWER DIMENSIONS |
|
|---|---|
| Weight | 4200 – 990 lbs.; 4800 – 1,005 lbs. |
| Overall Height | 49″ |
| Overall Width Chute Up/Chute Down |
4200 – 47″ / 56″; 4800 – 54″ / 61″ |
| Overall Length | 80″ |
| Tire to Tire Width | 42″ |
| Tires – Front | 13 x 6.5 – 6 Smooth Tread |
| Tires – Rear | 23 x 8.5 – 10 Turf Tread |
| Steering | Dual Lever Steering, Independent Control |
| Turning Radius | Zero Turn – Zero Degrees, Turns Within Unit Length |
| Ground Speed (forward) | Up To 9 mph |
| Parking Brake | Internal Wet Disk |
