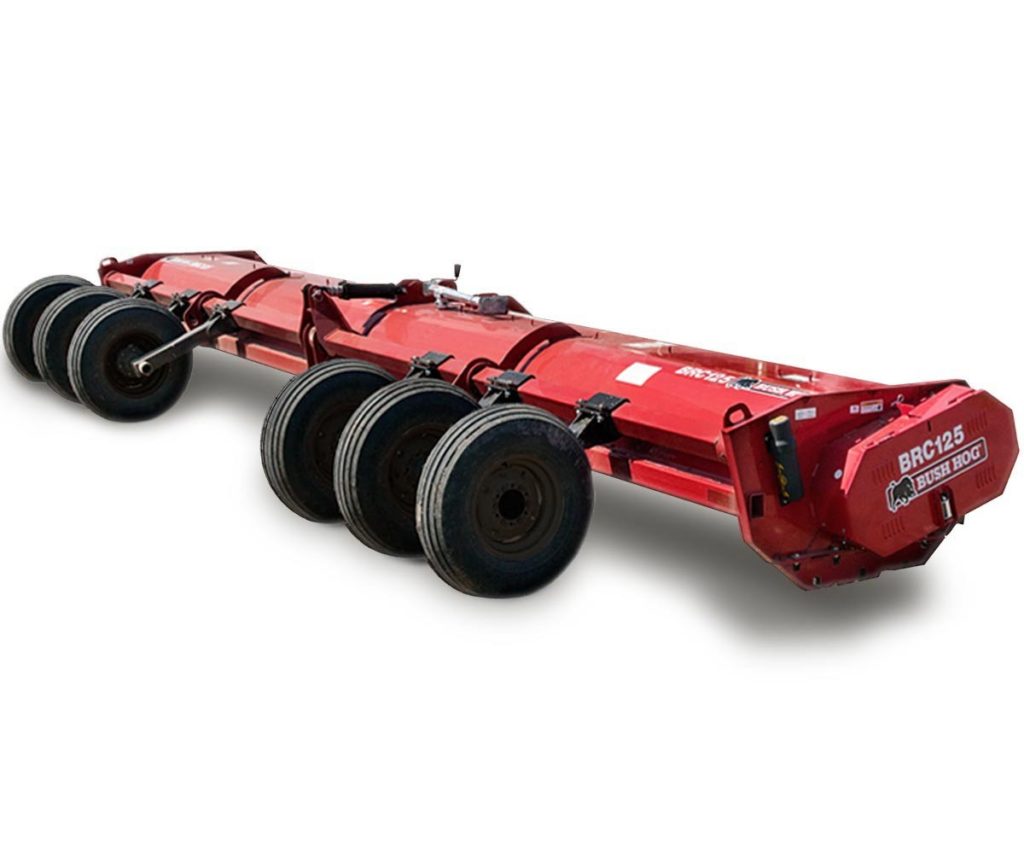

BRC Flail Crop Shredder

Models: BRC115, BRC118, BRC120 & BRC125 (Available in Lift, Semi Mount and Pull Type)

The Bush Hog® line of BRC row crop flails provides superior shredding performance in a number of crop conditions… cotton, BT corn stalks, milo, rice, wheat and vegetable stubble are no match for these machines. Designed to handle higher volumes of crop residue, the BRC models from Bush Hog are equipped with a re-cutter bar design which allows the material to be cut three times thereby speeding up crop decomposition. Computer-balanced 10 3/4-inch diameter rotors ensure smooth operation in tough conditions. Triple-lipped, sealed double row spherical roller bearings, combined with reversible, hard surfaced cutter knives and 3/16-inch internal steel liners at critical wear areas, ensure greater reliability in tough conditions. Bush Hog® units are available in 15, 18, 20 and 25-foot operating widths to match various crop conditions and row spacings. Depending on the model, the BRC row crop flails are available with pull, lift or semi-mount hitches. These BRC row crop flails are ready to shred!

Features

Performance Features
  • Blades chop through tough cotton, BT corn stalks, milo, rice, wheat, or vegetable stubble
  • Re-cutter bar speeds up decomposition of plant residue to get nutrients back into the ground quickly
  • Frame provides ground cover to minimize wind and water erosion
  • Available in 15, 18, 20, and 25-feet widths to fit your crop’s row spacing
Product Features

Specifications

Models BRC115 BRC118 BRC120 BRC125
Cutting Width 180-inches 216-inches 240-inches 300-inches
Overall Width 204-inches 240-inches 264-inches 324-inches
Cutting Height 1-inches to 18-inches 1-inches to 18-inches 1-inches to 18-inches 1-inches to 18-inches
Hitch Types CAT II-III QH Lift, Semi-Mount, or Pull Type CAT II-III QH Lift, Semi-Mount, or Pull Type CAT II-III QH Lift, Semi-Mount, or Pull Type Lift, Semi-Mount, or Pull Type
Cutter Shaft Diameter 10-3/4-inches 10-3/4-inches 10-3/4-inches 10-3/4-inches
Min PTO HP Required
Lift 120 HP 130 HP 130 HP N/A
Semi-Mount 100 HP 110 HP 120 HP 150 HP
Pull-Type 100 HP 110 HP 120 HP 140 HP
Gearbox Rating** 207 HP 207 HP 207 HP 207 HP
PTO Type 1,000 RPM 1,000 RPM 1,000 RPM 1,000 RPM
Blades Hard Surfaced: No “D” Rings
Blade Tip Speed (FPM) 12,620 12,620 12,620 12,000
No. of Blades 168 200 216 272
Driveline Size Cat. 5 or 6 Cat. 5 or 6 Cat. 5 or 6 Cat. 5 or 6
Driveline Protection 5 x 5V Banded Belt 5 x 5V Banded Belt 5 x 5V Banded Belt 5 x 5V Banded Belt
Rotor Bearing Protection Anti-Wrap Seal Protector
Cutter Shaft Bearings 2 9/16-inches Double Row Spherical Roller, Triple Sealed
Hood Thickness 3/16-inch with 3/16-inch Internal Wear Liner
End Plate Thickness 1/4-inch 1/4-inch 1/4-inch 1/4-inch
No. of Axles 4 4 4 4
Wheel Hub Size 5-Bolt 5-Bolt 6-Bolt 6-Bolt
Tire Size/Type 6.70-5 Ribbed 6.70-5 Ribbed 9.5L-15 Ribbed 9.5L-15 Ribbed
Safety Deflector Type Standard Standard Standard Standard
Weight (Approx.) 4,600-lbs. 4,960-lbs. 5,150-lbs. 6,300-lbs.
