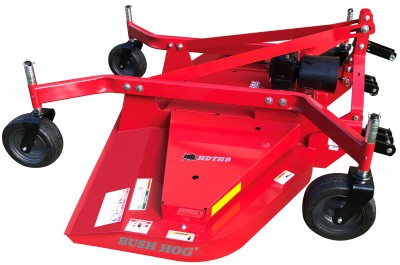

HDTH Finishing Mowers

60-99 inch Cutting Widths
Minimum Required HP of 15-35 to meet the needs of today’s smaller, compact tractors
Dual floating hitch points allow the mower to rise and fall with the contour of terrain
Blade Tip Speeds over 18,200 feet per minute
1½ inch blade overlap eliminates streaking
Cutting height adjustment is made with the pull of a pin, and ranges from 1½ to 6½ inches

Quick Hitch compatibility on all models
New dove-tail rear discharge design
Sideband depth increased to 5-inches to allow additional flow of cut material under deck reducing clipping size
1 Year Limited Warranty with a 5 Year Gearbox Warranty

Safety Features

MODELS	HDTH5	HDTH6	HDTH7	HDTH8
Cutting Width	60-inches	72-inches	84-inches	99-inches
Cutting Height	1½ – 6½”	1½ – 6½”	1½ – 6½”	1½ – 6½”
Tractor HP Range	15-35 PTO	20-40 PTO	30-55 PTO	35-55 PTO
Hitch Type	Cat 1 Std & QH	Cat 1 Std & QH	Cat 1, Cat 2 Std & QH	Cat 1, Cat 2 Std & QH
Blade Size	¼ x 2½ x 21″	¼ x 2½ x 25″	5/16 x 2½ x 29″	¼ x 2½ x 21″
Number of Blades	3	3	3	5
Blade Tip Speed	18,231 FPM	18,272 FPM	18,266 FPM	18,266 FPM
Blade Overlap	1½”	1½”	1½”	1½”
Blade Uplift	Parallel	Parallel	Parallel	Parallel
Driveline Size	ASAE Cat 3	ASAE Cat 3	ASAE Cat 3	ASAE Cat 3
Front Roller (optional)	3×5″	3×5″	3×5″	3×13″
Discharge	Rear	Rear	Rear	Rear
Deck Thickness	7ga	7ga	7ga	7ga
Tires	3¼ x 10 Solid	3¼ x 10 Solid	4 x 10 Solid	5 x 13 Solid
Belts	(1) “B” Size Aramid Cord	(1) “B” Size Aramid Cord	(1) “B” Size Aramid Cord	(2) “B” Size Aramid Cord
Belt Adjustment	Spring-Loaded Idler	Spring-Loaded Idler	Spring-Loaded Idler	Spring-Loaded Idler
Gearbox	45 HP	45 HP	55 HP	55 HP
Approx. Weight	672 lbs	730 lbs	954 lbs	1190 lbs
Warranty	1-Year Limited Warranty with a 5-Year Limited Gearbox Warranty
