Rebel
POWER-PACKED PERFORMANCE IN A VALUE-PACKED ZERO TURN

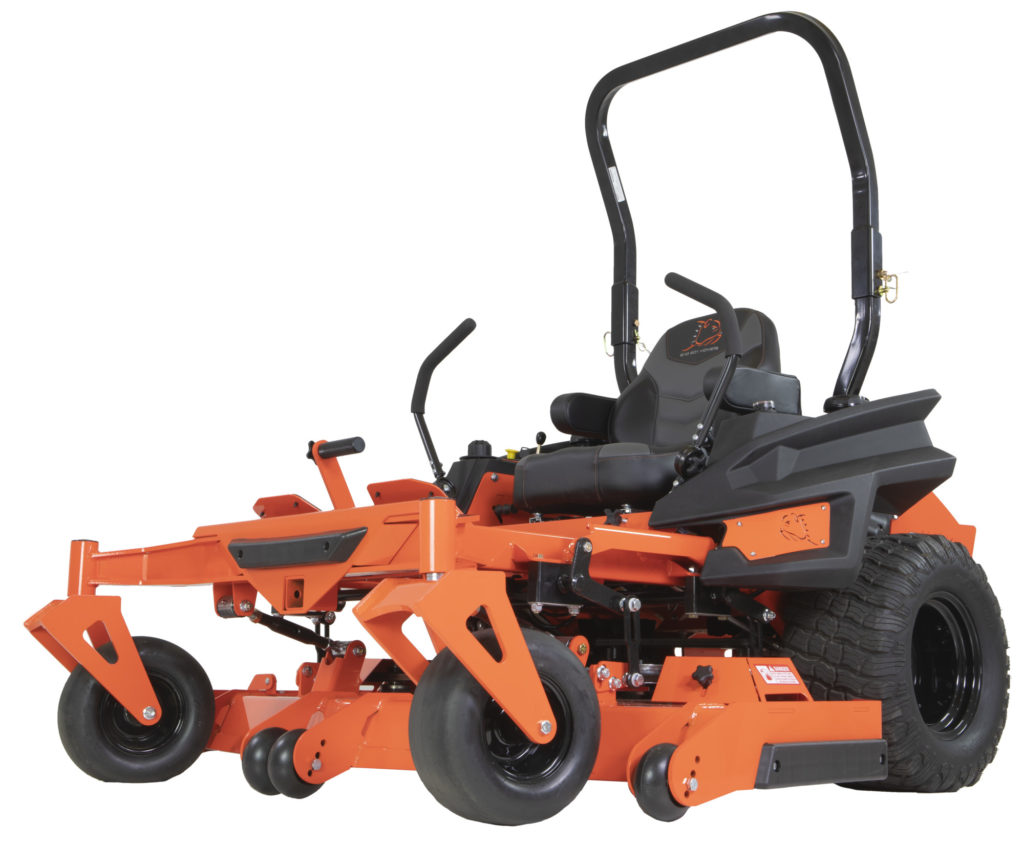

Built on the legacy of classic Bad Boy Mower performance and strength, the all-new Rebel Commercial Zero Turn Mower shares the same big-performance platform as our other Outlaw mowers. Featuring large integrated drive systems available across five engine options and three deck sizes, it’s the perfect mix of power professionals demand—and priced at a value homeowners and large landowners have come to expect.
MOWER SPECIFICATIONS |
|
|---|---|
| Cutting Width | 5400 – 54″; 6100 – 61″ |
| Cutting Height | 1″ – 5″ In 1/3″ Increments |
| Blades | 5400 – 1/4″ x 2 1/2″ x 18 3/4″, High Lift, Heat Treated 6100 – 1/4″ x 2 1/2″ x 21″, High Lift, Heat Treated |
| Lift and Height Adjustment | Foot-Assist Manual Lift With Dial-Style Height Adjustment. Optional Electric Lift |
| Blade Belt | Single V-Belt Spring Tension |
| Anti-Scalp Rollers | 6 Total (4 Double-Bracketed Front Wheels, 2 Rear Wheels) |
| Deck Flotation | Floats On Four 1/4″ Deck Hangers |
| Deck Thickness | 1/4″ Thick Solid Steel With Additional 1/4″ Steel Leading Edge And 3/8″ Side Trim |
DRIVE SYSTEM SPECIFICATIONS |
|
|---|---|
| Transmission | Hydro-Gear® ZT-4400 Dual Integrated Hydrostatic Transaxle |
| Pump Drive | Integrated Axial Piston Pump & Motor w/ Gear Reduction |
| Wheel Drive | Integrated with Commercial Grade Gear Reduction |
| Hydrostatic System Oil | 20W50 Motor Oil |
| Hydraulic Filter | 25 Micron, Replaceable Spin-On |
| Pumps | – |
| Hydraulic Coolers | 8″ 3,600RPM Cooling Fan; One Per Unit |
MOWER DIMENSIONS |
|
|---|---|
| Weight | 5400 – 1,270 lbs.; 6100 – 1,325 lbs. |
| Overall Height | 50″ |
| Overall Width Chute Up/Chute Down |
5400 – 56 1/2″ / 68 1/2″; 6100 – 63 1/2″/75 1/2″ |
| Overall Length | 92″ |
| Tire to Tire Width | 5400 – 55 1/2″; 6100 – 55 1/2″ |
| Tires – Front | 13 x 6.5 – 6 Smooth Tread |
| Tires – Rear | 24 x 12 – 12 Reaper Tires |
| Steering | Dual Lever Steering, Independent Control |
| Turning Radius | Zero Turn – Zero Degrees, Turns Within Unit Length |
| Ground Speed (forward) | Up To 12 mph |
| Parking Brake | Internal Parking Brake |
Also Available In 72″ Cutting Width
MOWER SPECIFICATIONS |
|
|---|---|
| Cutting Width | 7200 – 72″ |
| Cutting Height | 1″ – 5″ In 1/3″ Increments |
| Blades | 7200 – 1/4″ x 2 1/2″ x 24″, High Lift, Heat Treated |
| Lift and Height Adjustment | Foot-Assist Manual Lift With Dial-Style Height Adjustment. Optional Electric Lift |
| Blade Belt | Single V-Belt Spring Tension |
| Anti-Scalp Rollers | 6 Total (4 Double-Bracketed Front Wheels, 2 Rear Wheels) |
| Deck Flotation | Floats On Four 1/4″ Deck Hangers |
| Deck Thickness | 1/4″ Thick Solid Steel With Additional 1/4″ Steel Leading Edge And 3/8″ Side Trim |
DRIVE SYSTEM SPECIFICATIONS |
|
|---|---|
| Transmission | Hydro-Gear® ZT-4400 Dual Integrated Hydrostatic Transaxle |
| Pump Drive | Integrated Axial Piston Pump & Motor w/ Gear Reduction |
| Wheel Drive | Integrated with Commercial Grade Gear Reduction |
| Hydrostatic System Oil | 20W50 Motor Oil |
| Hydraulic Filter | 25 Micron, Replaceable Spin-On |
| Pumps | – |
| Hydraulic Coolers | 8″ 3,600RPM Cooling Fan; One Per Unit |
MOWER DIMENSIONS |
|
|---|---|
| Weight | 7200 – 1,375 lbs. |
| Overall Height | 50″ |
| Overall Width Chute Up/Chute Down |
7200 – 74″/86 1/2″ |
| Overall Length | 92″ |
| Tire to Tire Width | 7200 – 55 1/2″ |
| Tires – Front | 13 x 6.5 – 6 Smooth Tread |
| Tires – Rear | 24 x 12 – 12 Reaper Tires |
| Steering | Dual Lever Steering, Independent Control |
| Turning Radius | Zero Turn – Zero Degrees, Turns Within Unit Length |
| Ground Speed (forward) | Up To 12 mph |
| Parking Brake | Internal Parking Brake |
