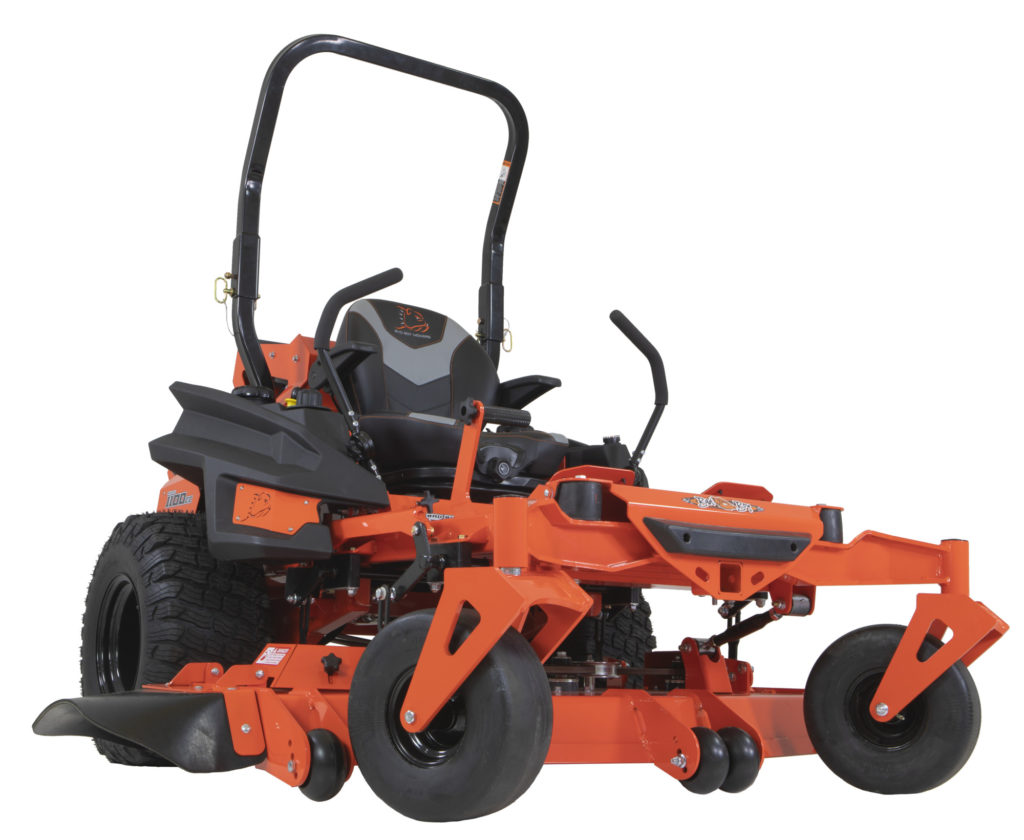

Renegade Diesel
AN ALL NEW DIESEL GEARED UP FOR CRUSHING BEAST MOWED
There are diesel zero-turn mowers, and there’s the Bad Boy Renegade diesel. Strapping a 1100cc Perkins Diesel engine on our newest lineup of Outlaw Renegade mowers delivers pure longlasting, brute force performance. It’s a combination of comfort, durability and cutting-edge innovation that sets itself apart from any other commercial-grade zero-turn on the turf. Prepare yourself for beast mowed.
The Renegade Diesel Zero Turn Mower features our All New 3-Link Rear Trailing Arm Suspension — the first and only of its kind in the industry. Matched with front suspension arms, to provide a smoother ride, more consistent tire contact and increased hillside stability. Paired with our All New Adjustable Footrest and Premium Suspension Seat the Renegade Diesel Zero Turn Mower provides all day comfort with unsurpassed cutting power.
MOWER SPECIFICATIONS |
|
|---|---|
| Cutting Width | 6100 – 61″ |
| Cutting Height | 2″ – 6″ in 1/3″ Increments |
| Blades | 6100 – 1/4″ x 2 1/2″ x 21″, High Lift, Heat Treated |
| Lift and Height Adjustment | Foot-Assist Manual lift with Dial-Style height adjustment. Optional electric lift |
| Blade Belt | Single V-Belt Spring Tension |
| Anti-Scalp Rollers | 6 Total (4 Double-Bracketed Front Wheels, 2 Rear Wheels) |
| Deck Flotation | Floats On Four 1/4″ Deck Hangers |
| Deck Thickness | 1/4″ Thick Solid Steel With Additonal 1/2″ Steel Leading Edge And 3/8″ Side Trim |
ENGINE SPECIFICATIONS |
|
|---|---|
| Gross Horsepower/CC | 1100cc (24.7hp) Horizontal Shaft Perkins® Diesel LC |
| Cylinders | 3 Diesel |
| Displacement | 1.1L/3-Cylinder |
| Maximum Torque | 70 ft. lbs. @ 3,400 RPM |
| Fuel Requirement | Diesel |
| Fuel Capacity | 13 Gallons |
| Fuel Filter | Replaceable Automotive Type |
| Cooling System | Liquid-Cooled |
| Ignition | Electronic |
| Starter | 12 Volt |
| Charging System | 20 Amp |
DRIVE SYSTEM SPECIFICATIONS |
|
|---|---|
| Transmission | Dual Hydrostatic |
| Pump Drive | 16cc Hydro-Gear® Pumps With Dual V-Belts From Engine Crankshaft |
| Wheel Drive | 18 cu. in. High Torque Parker Motors |
| Hydrostatic System Oil | 20W50 Motor Oil |
| Hydraulic Filter | 25 Micron, Replaceable Spin-On Type, 1 Per Pump |
| Pumps | Hydro-Gear 16cc Pump |
| Hydraulic Coolers | Finned Extruded Aluminum Heat Exchangers |
MOWER DIMENSIONS |
|
|---|---|
| Weight | 6100 – 1,790 lbs. |
| Overall Height | 51″ |
| Overall Width Chute Up/Chute Down |
6100 – 63 1/2″ / 75 1/2″ |
| Overall Length | 91″ |
| Tire to Tire Width | 6100 – 59″ |
| Tires – Front | 15 x 6.0 – 6 Smooth Tread/No Flats |
| Tires – Rear | 26 x 12 – 12 Reaper Tires |
| Steering | Dual Lever Steering, Independent Control |
| Turning Radius | Zero Turn – Zero Degrees, Turns Within Unit Length |
| Ground Speed (forward) | Up To 13 mph |
| Parking Brake | Disk Brakes |
