13003

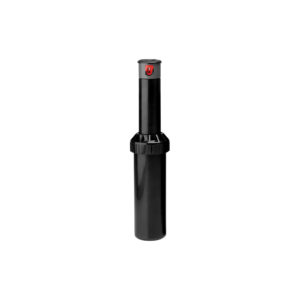

The MiniPro is a gear-driven, rotary type sprinkler, capable of covering an area of 18' to 36' (5.5 to 11.0 M) radius at nozzle pressure of 30 to 50 PSI (2.1 to 3.5 bar) with a discharge rate of .75 to 3.3 GPM (2.84 to 12.5 LPM).  The MiniPro is supplied with five (5) numerically coded interchangeable nozzles. Sprinkler nozzle trajectory is 26°.  The sprinkler has a stainless steel radius adjustment screw.

Perfect for small lawn and landscape areas and for replacing fixed spray zones.

FEATURES AND BENEFITS:

• Revolutionary Patented Top Arc Set – Simplified arc set allows for wet or dry adjustment in seconds.
• 1/2" (1,3 cm) Inlet – Replaces all standard mini rotors and pop-up sprays.
• Adjustable to 360° – Provides a full range of adjustment from 40° to 360°.
• Patented Top Arc Set Degree Markings – Clearly indicates the current watering pattern and simplifies arc set adjustment.
• Time Proven Patented Reversing Mechanism – Assures continuous reverse and return…over a 35 year history.
• Ratcheting Riser – Allows for easy adjustment of your left starting position with a simple turn of the riser.
• Rubber Cover – Seals out dirt and increases product durability.
• Wide Selection of Nozzles – Provides flexibility in system design.
• Optional Check Valve – Prevents low head drainage.
• Five Year Limited Warranty.

SPECIFICATIONS:

• Inlet: 1/2" (1,3 cm) Threaded NPT
• Arc Adjustment Range: 40° – 360°
• Flow Range: 0.8 – 3.3 GPM (3 – 12,5 LPM)
• Pressure Rating: 20 – 70 PSI (1,4 – 4,8 bar)
• Precipitation Rate: .26 – .60 in/hr (6,6 – 15,24 mm/hr) (Depending on Spacing and Nozzle Used)
• Overall Height (Popped Down): 4", 6", 12" (12,2 cm, 15,2 cm, 30,5 cm)
• Recommended Spacing: 17' – 34' (5,2 – 10,4 m)
• Radius: 18' – 36' (5,5 – 11 m)
• Nozzle Trajectory: 25°
• Riser Height: 4", 6" or 12" (12,2 cm, 15,2 cm, 30,5 cm)
