74001-CV

The K-Spray line offers system versatility with a wide range of pop-up heights suited for many applications from small flower beds to residential and light commercial lawns and planted areas. Manufactured with time-tested UV-resistant plastic and corrosion resistant stainless steel parts for long product life and reliability.

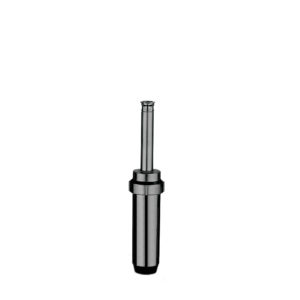

This model is the 4 inch pop-up model with a check valve.

FEATURES AND BENEFITS:

• Available in 3", 4", 6" and 12" (7,6, 10, 15, 30,5 cm ) Models – Provides flexibility in system design.
• Accepts Male Threaded Nozzles.
• Stainless Steel Retraction Spring – Provides reliable retraction of the riser in all soil conditions.
• Ratcheting Riser – Allows for easy pattern alignment by turning the riser.
• Heavy Duty Wiper Seal – Ensures leak free, full pop-up operation even under low-pressure situations.
• Optional Water-Saving Check Valve – Eliminates low head drainage.
• Optional Purple Cap for Reclaimed Water Use – Highly visible for identification of RCW systems.

SPECIFICATIONS:

• Pressure Rating: 20 – 50 PSI (1,4 – 3,5 bars)
• Inlet: 1/2" (1,3 cm) NPT Female Thread
• Overall Body Height:
  • 73001 – 3" (7,6 cm)
  • 74001 – 4" (10 cm)
  • 76001 – 6" (15 cm)
  • 71201 – 12" (30,5 cm)
