48H

48H

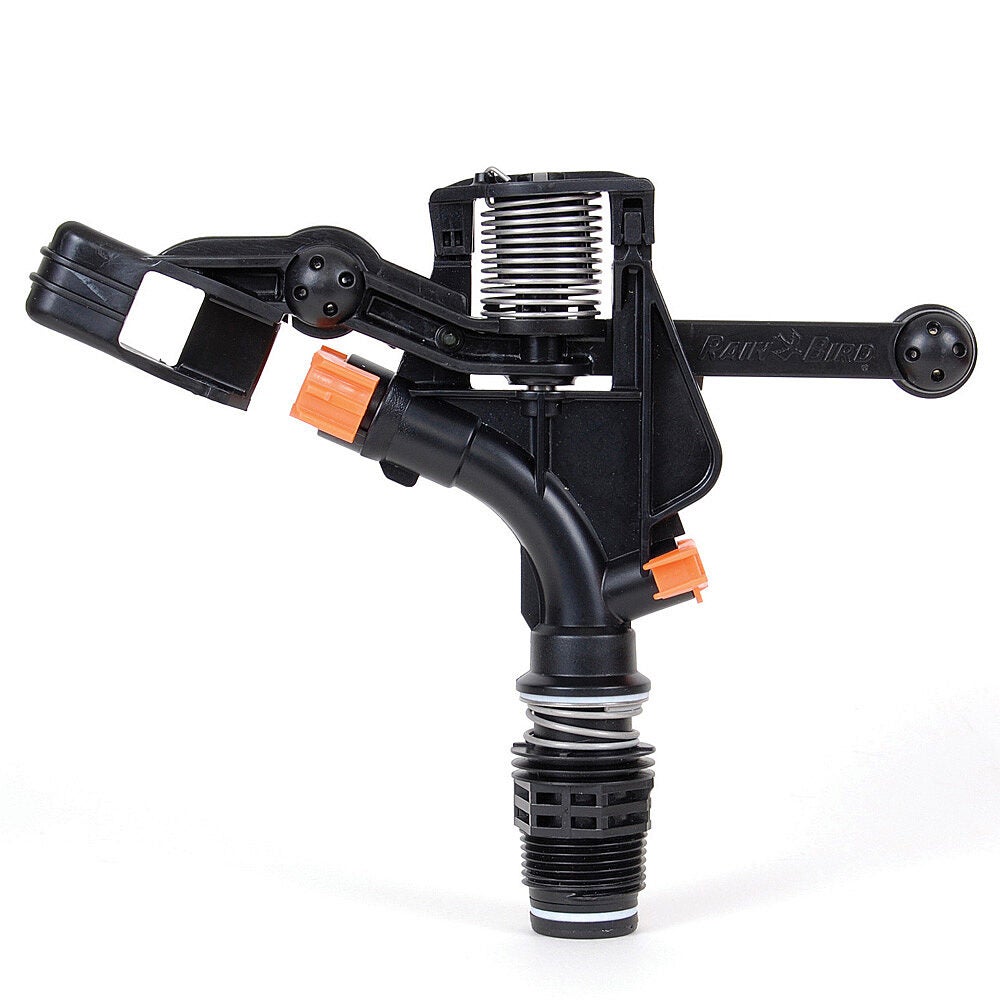

3/4" (19mm) Full Circle, Plastic Impact Sprinkler

The Rain Bird 48H series sprinkler is designed to provide you with unmatched durability, performance, and value. The robust plastic design also features quick-fit nozzles for easy maintenance.



  • 3/4" (19mm) male NPT plastic inlet bearing
  • Full circle operation
  • Durable plastic body and arm design with Stainless Steel springs and fulcrum pin
  • Color coded quick-fit nozzles provide easy maintenance
  • 5 nozzles, 2 spreader nozzles, and a plug allow for design flexibility
  • PTFE washers allow for improved performance at lower pressures
  • Plastic body and bearing provide increased affordability
  • For use with Rain Bird Plastic Quick Fit Nozzle Only, sold separately
  • Optional plug to block spreader nozzle port



  • Bearing: 3/4" (19mm) Male NPT, Plastic
  • Trajectory Angle: 23 degrees
  • Operating Range: 30-80 psi (2.1-5.5 bar)
  • Flow Rate: 4.2-14.2 gpm (960-3230 l/h)
  • Radius: 42-60 ft. (12.8-18.3 m)
  • Nozzle Port: Plastic Straight Bore Quick-Fit Nozzle
  • Spreader Nozzle Port: Plastic Straight Bore Quick-Fit Spreader Nozzle
