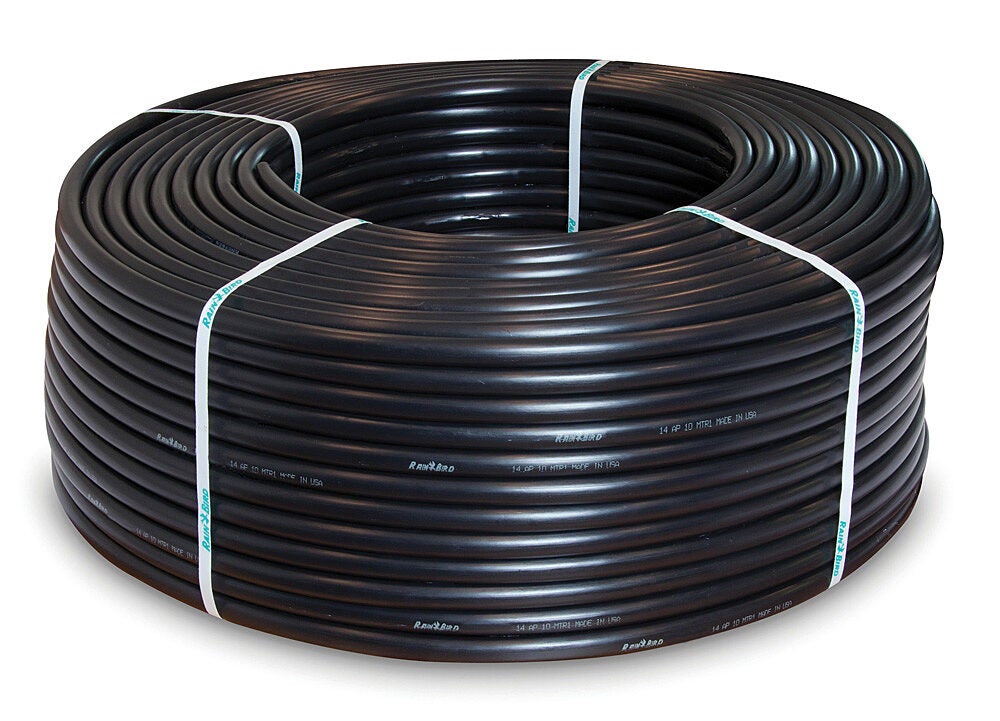

A5 PC Series Pressure Compensating Heavywall Dripline

Reliable, Steady Flow

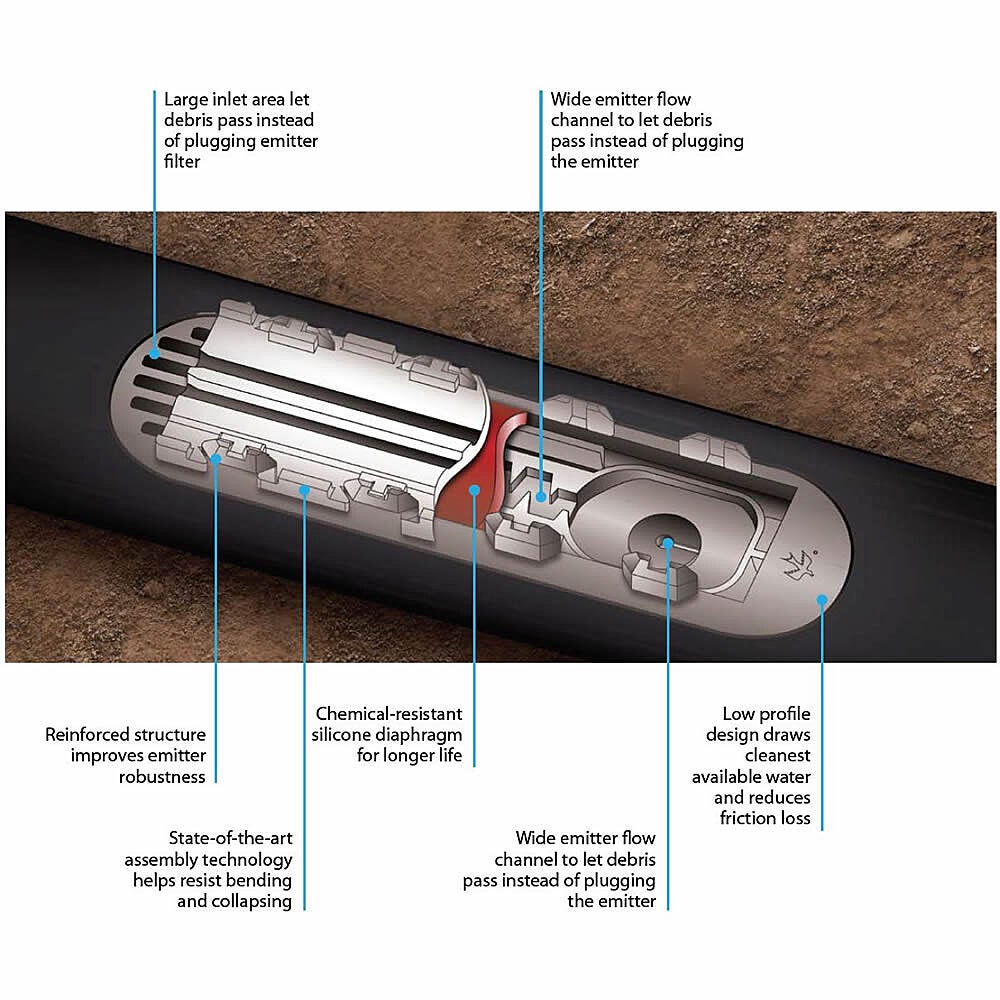

A5 PC’s grit-tolerant, clog-resistant design ensures that water will keep flowing to crops, whether it is being drawn from a well, pond, reservoir or canal.

High Uniformity and Efficiency

The technologically advanced pressure-compensating design of the low-profile flat-emitter maximizes uniformity and water-use efficiency, even with elevation changes. Increase crop yield by reducing the use of water, chemicals, and fertilizer.

Maximum Durability

Growers demand reliable performance in the harshest conditions. A5 PC dripline is engineered and tested to stand up to harsh chemicals, UV radiation and damage that can be caused by farm equipment, giving you years of worry-free performance.

Application Versatility

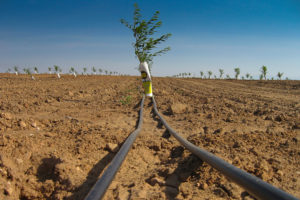

Best suited for permanent crops, orchard and vineyard applications including grapes, hops, stone fruit, almonds, walnuts, pistachios, blueberries, and pecans.

Optional Preinstalled Vine Clips

Rain Bird preinstalled vine clips help improve water placement and dramatically reduce installation time and labor costs. Vine clips are available on A5 PC™ Pressure Compensating Dripline and select sizes of PE Polyethylene Tubing. Ideal for all on-wire dripline applications.

• Installed to the growers specifications at the time of order; most common spacing ranges from 24" to 48"
• Easily adjustable in field to position and hold dripline or emitter location in place for precise water application
• Commonly used in applications with elevation changes to prevent water migration and ensure droplets fall at desired plant location
• Low-profile design optimal for mechanical harvesting

Operating Range:

• Compensating Pressure: 7 to 60 psi (0.48 to 4.14 bar)
• Water Temperature: Up to 110° F (43.3° C)
• Ambient Temperature: Up to 150° F (65.6° C)
• Required Filtration: 120 mesh (125 micron)

Nominal Flow Rates:

• 0.31 gph (1.2 l/h)
• 0.42 gph (1.6 l/h)
• 0.53 gph (2.0 l/h)
• 0.61 gph (2.3 l/h)
• 0.93 gph (3.5 l/h)
• 1.06 gph (4.0 l/h)

Standard Emitter Spacing:

• 12", 18", 24", 30", 36", 42", 48", 60"
• 20cm, 30cm, 40cm, 45cm, 50cm, 60cm, 75cm, 100cm
• Custom spacing available

Tubing Dimensions:

• 16 mm with 35mil wall: OD 0.610" (15.5mm), ID 0.540" (13.7mm), wall thickness 0.035" (0.9mm)
• 16 mm with 45mil wall: OD 0.630" (16.0mm), ID 0.540" (13.7mm), wall thickness 0.045" (1.1mm)
• 18 mm: OD 0.709" (18.0mm), ID 0.619" (15.7mm), wall thickness 0.045" (1.1mm)
• 20 mm: OD 0.786" (19.9mm), ID 0.690" (17.5mm), wall thickness 0.048" (1.2mm)

Customer Satisfaction Policy:

Rain Bird’s Customer Satisfaction Policy provides 5 years of protection on product workmanship and 7 years on environmental stress cracking.

Pressure vs Flow:
