Easy Fit Compression Fitting System

• Reduces inventory costs: Multi-diameter compression fittings work with a wide range of 16mm - 17mm tubing or dripline
• Saves time and effort: 50% less force is required to connect tubing and fittings versus competitive compression fittings. Adapters swivel for easy installation
• Provides increased flexibility: Just three Easy Fit Fittings and five Easy Fit Adapters are needed to make over 160 combinations of connections, accommodating countless installation and maintenance situations
• Works with all 16-17mm dripline and blank tubing
• Patented fittings and adapters are molded from UV-resistant and durable ABS materials
• Removable flush caps can be used to flush end of line and temporarily cap off lines for later expansion
• Not recommended with subsurface irrigation

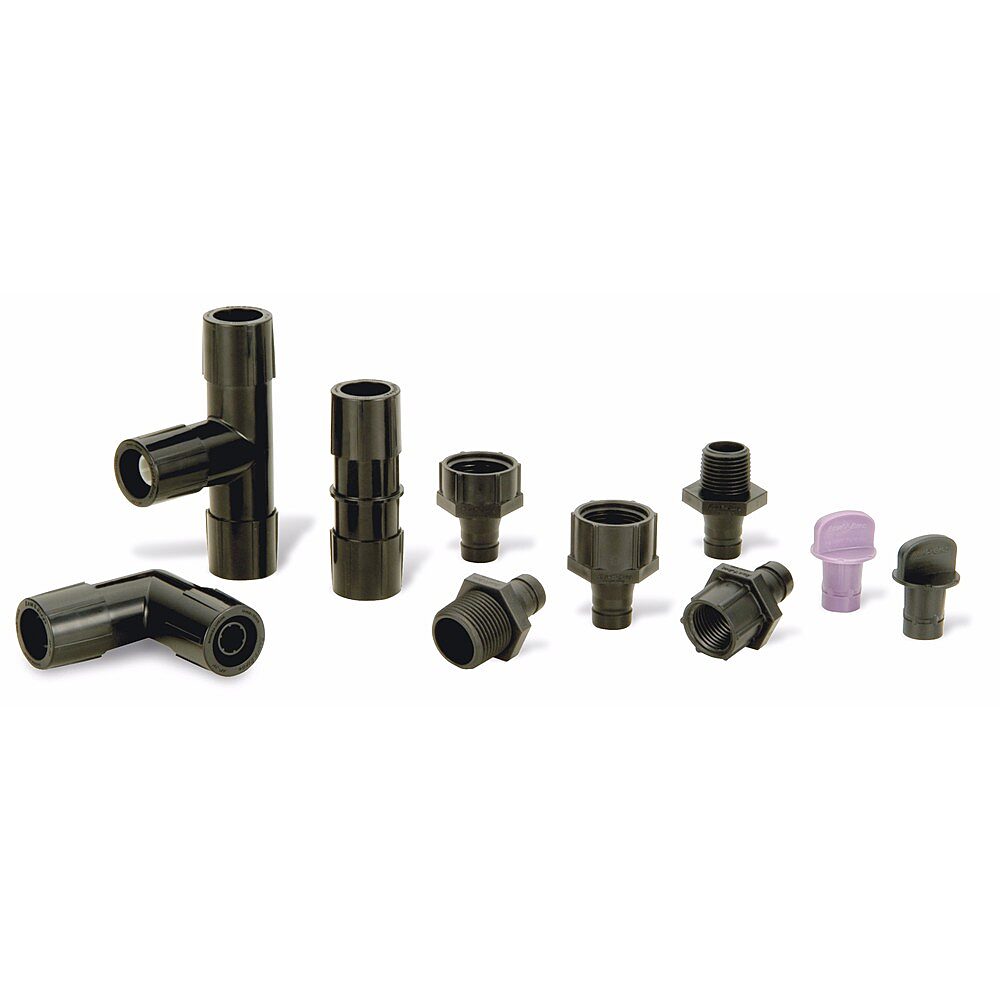

Easy Fit Fittings

• MDCF-COUP: Coupling
• MDCF-EL: Elbow
• MDCF-TEE: Tee

Easy Fit Adapters

• MDCF-50MPT: 1⁄2" Male Pipe Thread Adapter
• MDCF-75MPT: 3⁄4" Male Pipe Thread Adapter
• MDCF-50FPT: 1⁄2" Female Pipe Thread Adapter
• MDCF-75FPT: 3⁄4" Female Pipe Thread Adapter
• MDCF-75FHT: 3⁄4" Female Hose Thread Adapter
• MDCF-CAP: Removable Flush Cap For Easy Fit Fittings (Black)
• MDCF-PCAP: Removable Flush Cap For Easy Fit Fittings (Purple, to designate non-potable water)

Operating Range

• Pressure: 0 to 60 psi (0 to 4.1 bar)
• Accepts tubing with an O.D. of 0.630" to 0.669" (16-17mm)
• Recommended for use above surface only
