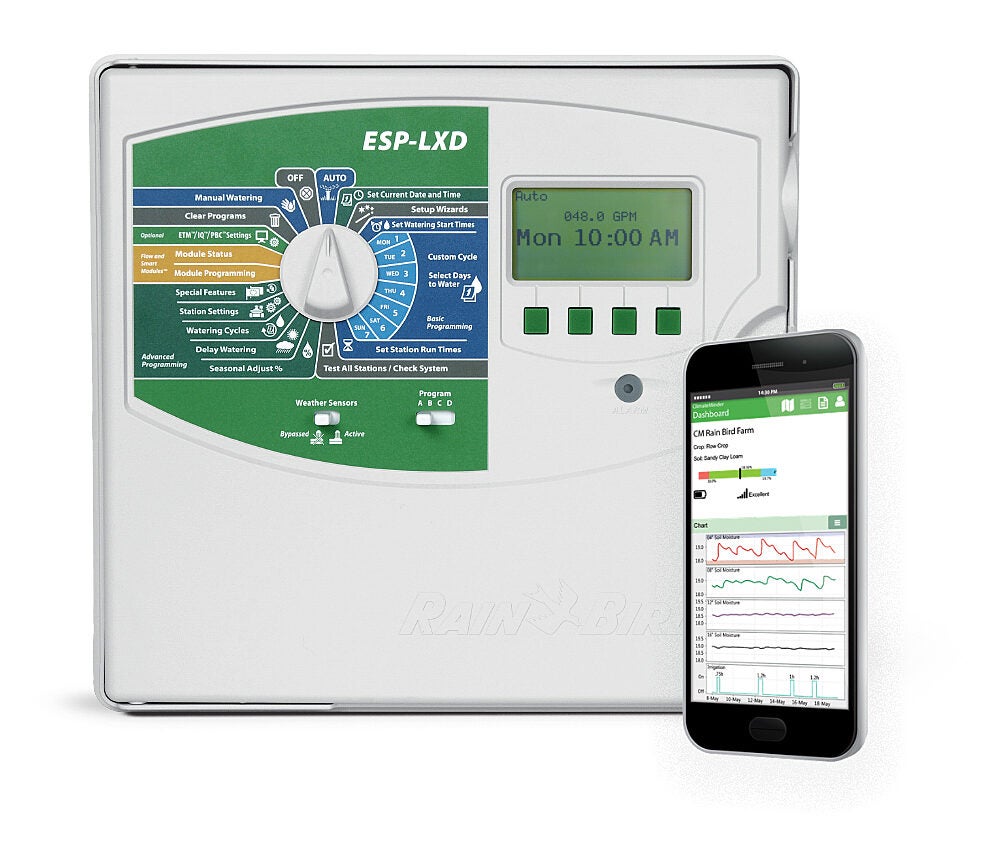

ESP-LXD with ClimateMinder Control

ESP-LXD with ClimateMinder Control

Two-wire controller with remote access

ESP-LXD with Rain Bird ClimateMinder remote access allows growers to review, update, and initiate irrigation cycles from any web-enabled device. ESP-LXD with ClimateMinder control has the ease of use of the standalone ESP-LXD controller, with a plug-and-play cellular cartridge for remote on-demand access to create or modify irrigation programs.

Upgraded controller with remote access allows for any web-enabled device:
  • Create or modify irrigation programs
  • Move irrigation sets
  • Adjust the irrigation schedule for the next seven days
  • Manually start or stop a station or program
  • Check current and remaining runtimes
  • Change the controller between off, auto, or manual
  • Reverse synchronize any changes made in the field to the remote system
Controller Features
  • Two-wire run lengths up to 2.5 miles (4km)
  • Control well, boost, fertigation, and other pumps
  • Up to 96-hours of continuous runtime
  • 50 station two-wire decoder controller standard, expandable to 200 stations
  • 8 simultaneous stations
  • Supports decoders: CMLXFD101, CMLXFD102, CMLXFD202
  • Supports CMLXSD210 sensor decoders (flow sensing and weather sensor support) and CMLXLSP1 line surge protectors (one per 500 feet of two-wire path required)
  • Plastic, locking, UV resistant, wall-mount case
Remote Access Cellular Cartridge
  • Plug and play module with internal antenna (external optional)
  • 3G AT&T Cellular sim card
Operating Specifications
  • Station timing: up to 96 hrs continuous runtime
  • Program level and global Monthly Seasonal Adjust: 0% to 300% (16 hrs maximum station run time)
  • 4 independent programs (ABCD); ABC programs stack, ABCD overlap
  • 8 start times per program
  • Program Day Cycles including custom days of the week, odd, odd no 31st, even, and cyclical dates
  • manual station, program, test program
Certifications
  • UL, CE, cUL, C-Tick
Field Decoders
  • CMLXFD101: Between the signal line and valve
  • CMLXFD102: Between the signal line and two valves
  • CMLXFD202: Between the signal line and two valves or two pairs of valves
  • CMLXSD210: Signal line and analog or digital sensor
  • CMLXLSP1: Line surge protection
Electrical Specifications
  • Input required: 120 VAC ± 10%, 60Hz
  • Power back-up: Lithium coin-cell battery maintains time and date while nonvolatile memory maintains the schedule
  • Multi-valve station capacity: up to 2 solenoid valves per station; simultaneous operation of up to eight solenoids and/or master valves
Dimensions (W x H x D)
  • 14.32” W x 12.69” H x 5.50” D (36.4 cm W x 32.2 cm H x 14.0 cm D)
ESP-LX Series Controller with ClimateMinder Control
  • CMLXD: ESP-LXD 50-station two-wire decoder controller with cell modem and ClimateMinder remote access
Accessories
  • CMLXEXTANT: External GPRS Antenna (optional)
  • CMLXDSM75: ESP-LXD 75-station expansion module
Field Decoders for ESP-LXD
  • CMLXFD101: Between the signal line and valve
  • CMLXFD102: Between the signal line and two valves
  • CMLXFD202: Between the signal line and two valves or two pairs of valves
  • CMLXSD210: Signal line and analog or digital sensor
  • CMLXLSP1: Line surge protection
Upgrade Kit to Convert Stand-alone ESP-LX Controllers
  • CMLXNCCGP:    GPRS/Cellular Network Communication Cartridge with internal antenna
  • CMLXEXTANT:    External GPRS Antenna (optional)
Stand-alone Controller
  • CMLXDWOM: ESP-LXD 50 station two-wire decoder controller
