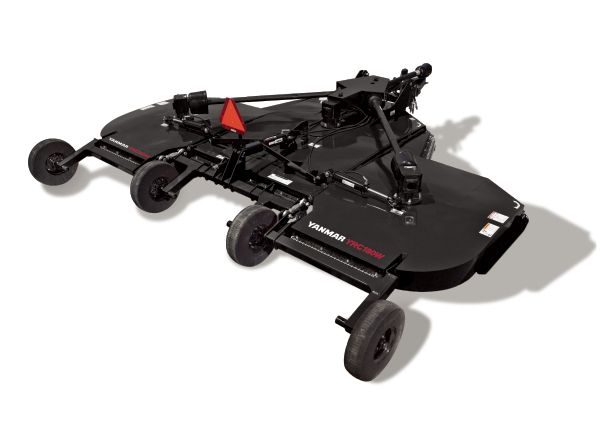

Yanmar Flexwing Rotary Cutter

An innovative design --purpose-built for smaller, more fuel-efficient tractors -- gives you acreage-eating cutting width matched to your higher horsepower compact tractor. Make short work of pasture brush control, waterway maintenance, or municipal vegetation management.
MODEL YRC144 YRC180
Tractor PTO HP 35 Minimum 40-90 HP
Transport Width 96"
Cutting Height Range (in.) 2-12" 2-12"
Cutting Capacity (in.) 1-1.5" 1.5"
Blade Tip Speed (fpm) 14,300 fpm center/ 14,900 fpm tip 15,270 fpm
Approximate Weight (lbs.) 2,450 3,120
Blade Dimensions (in.) 0.5 x 4" 0.5 x 4"
Cutting Area Shielding Standard Chain Shielding Rubber Belting or Chain
Main Driveline Cat 4 Cat 4 CV
Wing Driveline Cat 3 Cat 3
Tractor Hitch Swivel Clevis Clevis
Cutting Swath (in.) 144" 180"
Side Frame Depth (in.) 10" 10"
Deck Thickness (in.) 12 Gauge 0.12"
Hinges/Hinge Rod Diameter (in.) 1" 1"
Vertical Shaft Size (in.) 2" 2"
Splitter/Spindle Gearbox HP 160 / 90 HP 160 / 90 HP
Blade Type Blade Bolt, Hi-Tilt Blade Bolt, Hi-Lift
Blade Overlap (in.) 6" 6"
Hydraulics Wing Flex 90 degrees up, 22 degrees down 90 degrees up, 22 degrees down
Suspension Spring on Center Spring on Cylinder
Wheel Type Options Laminated, Used Aircraft, Foam-Filled Aircraft 15" Rims; 21" Laminated; or 24" new Ag
Gearbox Warranty (limited) 6 Years 6 Years
Side Frame Thickness (in.) 0.18"
Deck Type Smooth, Sloped
Material Flow System Partially Baffled Deck
Stump Jumper Type Standard Bolt On
Overall Width x Length (in.) 190 x 170"
