LF2400 Long Range (LR) Low Flow Sprinkler



• Weighted drive unit increases dwell time between stream interruptions to maximize throw distance
• Precision Jet (PJ) spoon directs water toward the field to prevent erosion at the riser base
• Deflector’s made of engineered thermoplastic for wear resistance and dimensional stability and designed with break-up features  to optimize uniformity
• Consistent performance in wide temperature range: ideal for cooling or frost protection
• Snap-in-place color-coded nozzles and deflectors for simple setup and easy field identification – no tools required

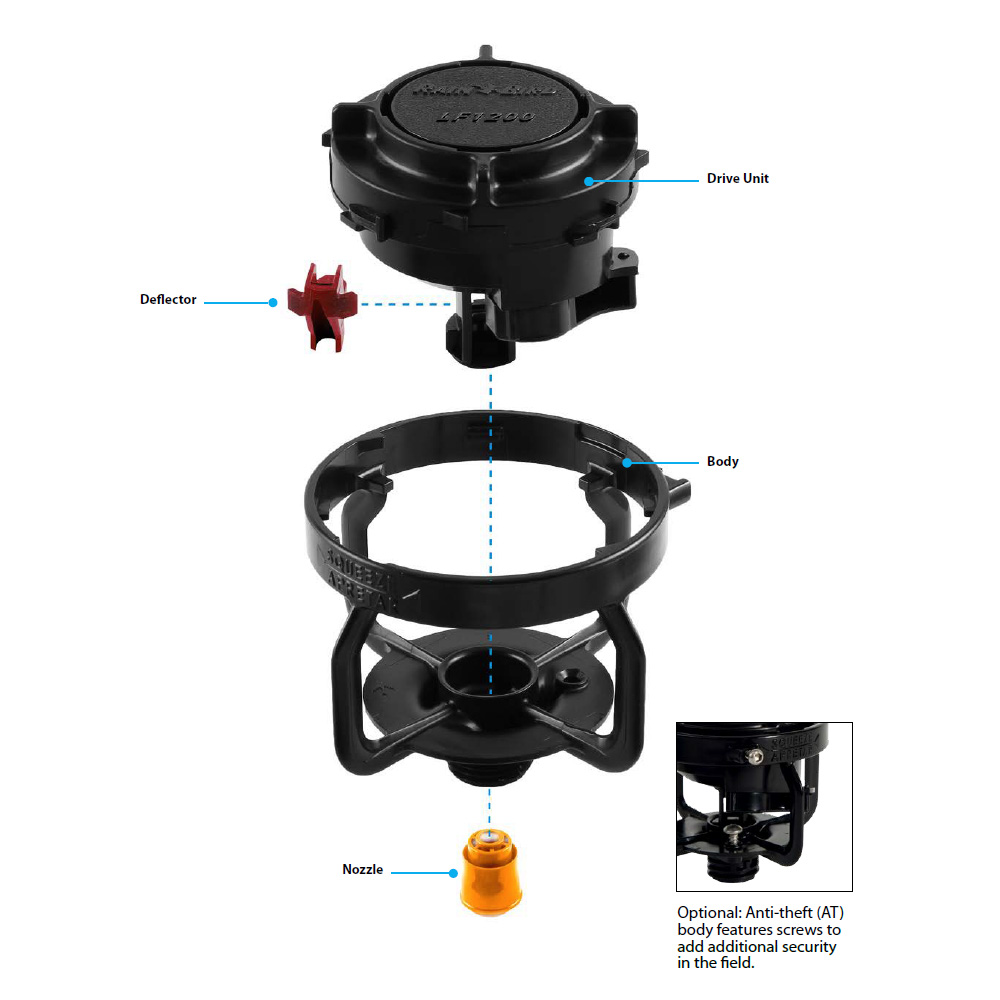

• Sprinkler can be purchased assembled or separately and comprised of four simple parts: drive unit, body (ACME or NPT), deflector, and nozzle.  Anti-theft bodies sold separately.

Operating Pressure:

• 25 to 60 psi (1.7 to 4.2 bar)

Flow Range:

• 2.93 to 6.82 gpm (665 to 1,549 l/h)

Throw Radius Range:

• 38 to 50 feet (11.6 to 15.2m)

Stream Height Range:

• 76 to 120 in (193 to 305 cm)

Sprinkler Body Options:

• ½“ (13mm) NPT male pipe thread
• 23mm ACME male thread (requires special adapter)
• 23mm ACME male thread with 3/4" (19mm) male NPT Adapter installed
• Anti-theft bodies available

Deflector Trajectory Outlet:

• 27° Black

Nozzle Sizes:

• Silver 0.141” (3.57mm, 9/64”)
• Brown 0.156” (3.97mm, 5/32”)
• Dark Grey 0.172” (4.37mm, 11/64”)

Packaging Data:

• Assembled sprinklers can be ordered in increments of 1; case quantity of 100
• Nozzles and deflectors can be ordered in increments of 200 pieces; case quantity of nozzles is 2,000, case quantity of deflectors is 1,600
• Unassembled Body and Drive Units can be ordered in increments of 1; case quantity of 100

Accessories:

• Adapters available to convert ACME body to ½” or ¾” Male NPT
• Adapters available to convert ACME to female slip including: ½” and ¾” slip or 20mm and 25mm slip
• Edge guard, splash guard, and stream splitter available

---

LF Series Uniformity Pro™ Performance Information:

Uniformity Pro is an online selection tool that helps you pick the best Rain Bird LF™ Series nozzle and deflector combination for your agricultural irrigation needs. Simply enter your spacings and watering requirements.  Within seconds, Uniformity Pro will create a detailed results report with the best distribution uniformity combinations listed first. If you are a planner, designer, or specifier, Uniformity Pro™ can be used in combination with CIT SPACE™ to create single leg profiles and densograms for your proposals and presentations. Launch Uniformity Pro here.
