LF2400 Low Flow Sprinkler



• Weighted drive unit increases dwell time between stream interruptions to maximize throw distance
• Precision Jet (PJ) spoon directs water toward the field to prevent erosion at the riser base
• Deflector’s made of engineered thermoplastic for wear resistance and dimensional stability and designed with break-up features  to optimize uniformity
• Consistent performance in wide temperature range: ideal for cooling or frost protection
• Snap-in-place color-coded nozzles and deflectors for simple setup and easy field identification – no tools required
• Sprinkler can be purchased assembled or separately and comprised of four simple parts: drive unit, body (ACME or NPT), deflector, and nozzle.  Anti-theft bodies sold separately.

Operating Pressure:

• 25 to 60 psi (1.7 to 4.2 bar)

Flow Range:

• 1.69 to 4.02 gpm (384 to 913 l/h)

Throw Radius Range:

• 27 to 45 feet (8.1 to 13.5m)

Stream Height Range:

• 20 to 120 in (50 to 304 cm)

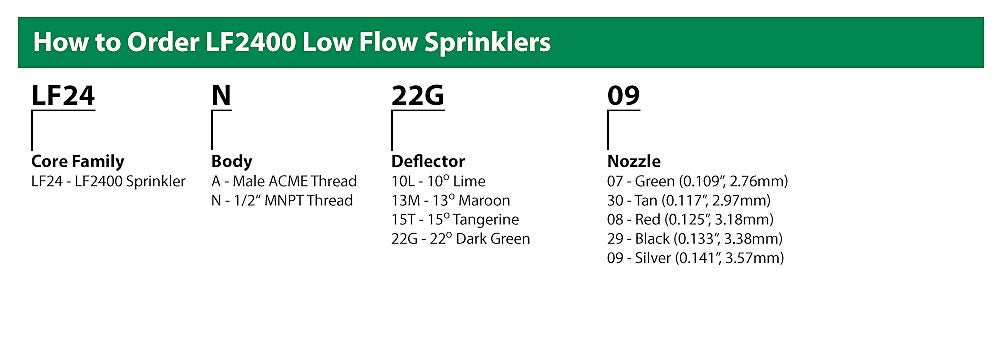

Sprinkler Body Options:

• ½“ (13mm) NPT male pipe thread
• 23mm ACME male thread (requires special adapter)
• Anti-theft bodies available

Deflector Trajectory Outlets:

• 10° Lime
• 13° Maroon
• 15° Tangerine
• 22° Dark Green

Nozzle Sizes:

• Green 0.109” (2.76mm, 7/64”)
• Tan 0.117” (2.97mm, 30 drill)
• Red 0.125” (3.18mm, 1/8”)
• Black 0.133” (3.38mm, 29 drill)
• Silver 0.141” (3.57mm, 9/64”)

Packaging Data:

• Assembled sprinklers can be ordered in increments of 1; case quantity of 100
• Nozzles and deflectors can be ordered in increments of 200 pieces; case quantity of nozzles is 2,000, case quantity of deflectors is 1,600
• Unassembled Body and Drive Units can be ordered in increments of 1; case quantity of 100

Accessories:

• Adapters available to convert ACME body to ½” or ¾” Male NPT
• Adapters available to convert ACME to female slip including: ½” and ¾” slip or 20mm and 25mm slip
• Edge guard, splash guard, and stream splitter available

---

LF Series Uniformity Pro™ Performance Information:

Uniformity Pro is an online selection tool that helps you pick the best Rain Bird LF™ Series nozzle and deflector combination for your agricultural irrigation needs. Simply enter your spacings and watering requirements.  Within seconds, Uniformity Pro will create a detailed results report with the best distribution uniformity combinations listed first. If you are a planner, designer, or specifier, Uniformity Pro™ can be used in combination with CIT SPACE™ to create single leg profiles and densograms for your proposals and presentations. Launch Uniformity Pro here.
