LFX300 Low Flow Sprinkler

LFX300 Low Flow Sprinkler

Flow rate: 0.28 to 0.73 gpm (62 to 161 l/h)

The small footprint of the low-volume LFX300 offers unparalleled operational flexibility with both interchangeable brake assemblies and nozzles. The LFX300 is perfect for a wide variety of low-volume irrigation applications in under-tree or overhead configurations, including orchard and field irrigation, environmental control, crop cooling and dust control. Constructed of engineered thermoplastic materials for durability and weather resistance, the sprinkler features a simple, three-part snap in place design for easy field maintenance.

Low Flow Irrigation Logo  Five Year Warranty Logo



  • Simple three-part sprinkler design includes body, nozzle, and brake assembly with attached deflector
  • Each nozzle and brake assembly was designed to easily be changed with other sizes or outlet trajectories to maximize operational flexibility
  • Easy field maintenance with simple snap-in-place nozzle and brake assembly including visual indicators to ensure correct positioning
  • Engineered to provide superior distribution uniformity for low volume applications in either an under-tree or over-head configuration
  • Constructed of engineered thermoplastic materials for durability and weather resistance
  • Color-coded nozzles and deflectors for easy identification
  • Three flow control nozzle options for consistent flow of water across the pressure range or terrain changes

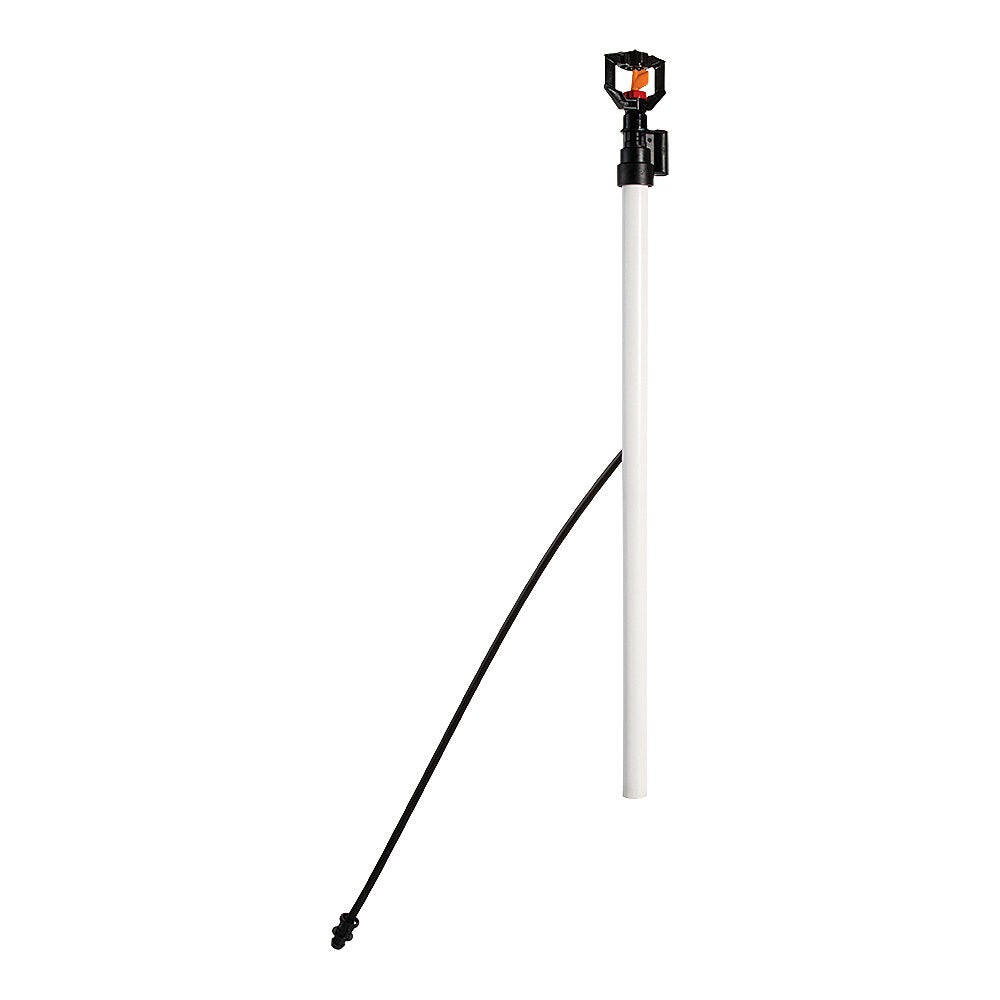

  • Stake options include: steel, fiberglass, or preassembled PVC assemblies
  • Variety of adapters and accessories available for increased application flexibility
Operating Range:
  • Pressure: 25 to 50 psi (1.7 to 3.45 bar)
  • Flow rate: 0.28 to 0.73 gpm (62 to 161 l/h)
  • Radius of throw: 18 to 25 feet (5.5 to 7.6 meters)
Sprinkler Body Options:
  • 1/2“ (13mm) NPT male pipe thread
  • Female ACME thread
Deflector Trajectory Outlets:
  • Deflector preassembled in brake assembly
  • 9° Red
  • 9° White
  • 15° Orange
Nozzle Sizes:
  • 40 Light Blue (0.040”, 1.02mm)
  • 45 Light Purple (0.045”, 1.14mm)
  • 50 Dark Green (0.050”, 1.27mm)
  • 55 Light Yellow (0.055”, 1.40mm)
  • 60 Light Red (0.060”, 1.52mm)
  • F1 0.35 gpm (79.5 l/h) Flow Control
  • F2 0.50 gpm (113.6 l/h) Flow Control
  • F3 0.43 gpm (97.6 l/h) Flow Control
Packaging Data:
  • Sprinkler can be ordered assembled from the factory or a la carte for ultimate field flexibility
  • Assembled sprinklers can be ordered in increments of 1; case quantity of 400
  • Sprinkler parts vary in order increment and case quantity; Nozzles: Order increment of 200; case quantity of 1,600.  Brake Assemblies: Order increment of 200; case quantity of 4,000. Bodies: Order increment of 1; case quantity of 400
  • Accessories and mounting options vary in order increment; call for details

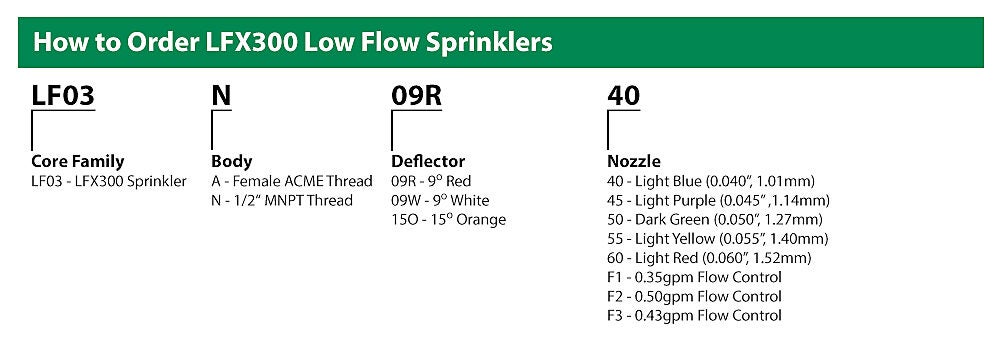

How To Specify LFX300
