LFX600 Low Flow Sprinkler

LFX600 Low Flow Sprinkler

Flow rate: 0.61 to 2.12 gpm (140 to 469 l/h)

LFX Low Flow Sprinklers are designed for unparalleled operational flexibility and unmatched uniform water distribution. The LFX600 continues that tradition by leveraging the same three-part top-mounted snap-together assembly design, but operates with maximum flow rate up to 2.1gpm (469 l/h) and a throw radius of up to 31 feet (9.4 meters).

Low Flow Irrigation Logo  Five Year Warranty Logo

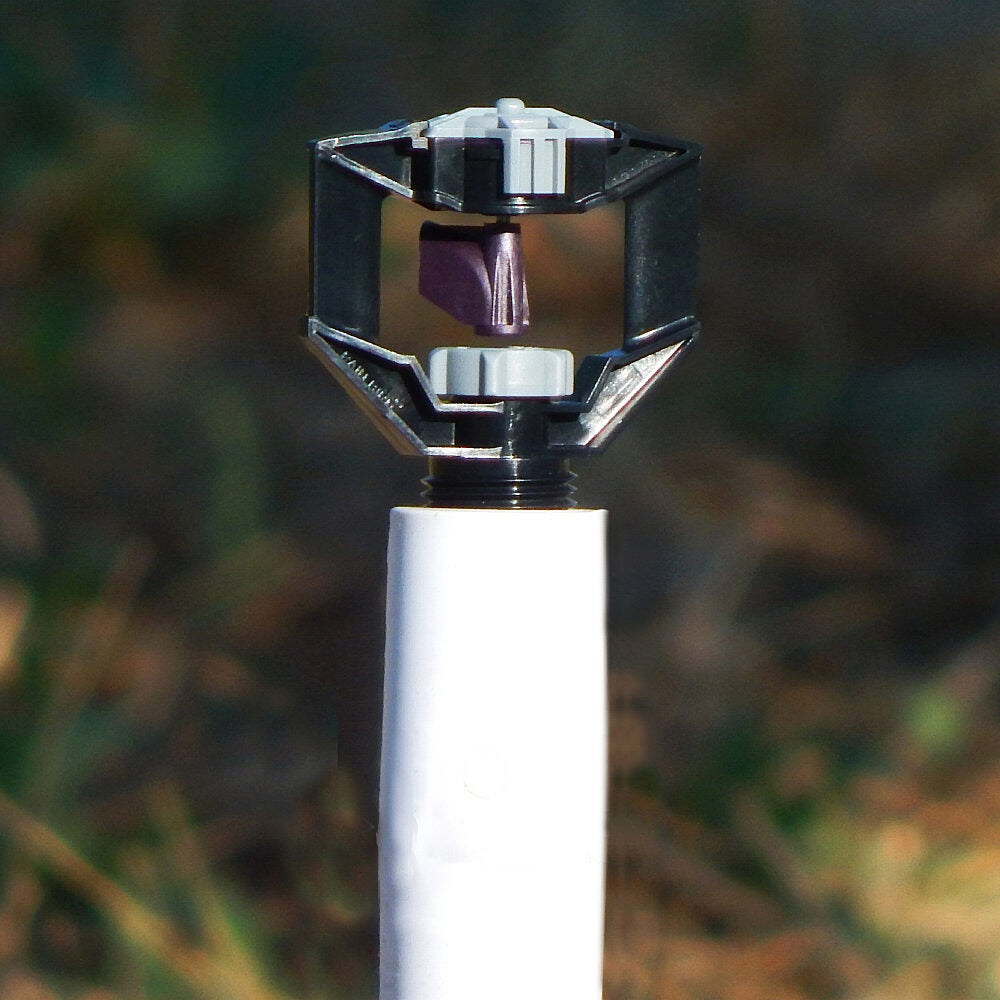

  • Simple three-part sprinkler design includes body, nozzle, and brake assembly with attached deflector
  • Each nozzle and brake assembly was designed to easily be changed with other sizes or outlet trajectories to maximize operational flexibility
  • Easy field maintenance with simple snap-in-place nozzle and brake assembly including visual indicators to ensure correct positioning
  • Engineered to provide superior distribution uniformity for low volume applications in either an under-tree or over-head configuration
  • Constructed of engineered thermoplastic materials for durability and weather resistance
  • Color-coded nozzles and deflectors for easy identification
  • Two flow control nozzle options for consistent flow of water across the pressure range or terrain changes
  • Stake options include: steel, fiberglass, or preassembled PVC assemblies with either 5mm and 10mm feedtube
  • Variety of adapters and accessories available for increased application flexibility
Operating Range
  • Pressure: 25 to 50 psi (1.7 to 3.45 bar)
  • Flow rate: 0.61 to 2.12 gpm (140 to 469 l/h)
  • Radius of throw: 22 to 31 feet (6.7 to 9.4 meters)
Sprinkler Body Options:
  • 1/2“ (13mm) NPT male pipe thread
  • Female ACME thread
Deflector Trajectory Outlets:
  • Deflector preassembled in brake assembly
  • 9° Blue
  • 12° Pink
  • 15° Purple
  • 15° Gold
Nozzle Sizes:
  • 65 Gray (0.065", 1.65mm)
  • 70 White (0.070", 1.78mm)
  • 78 Dark Blue (0.078", 1.98mm)
  • 86 Orange (0.086", 2.18mm)
  • 94 Purple (0.094", 2.39mm)
  • 10 Yellow (0.102", 2.59mm)
  • F4 0.75 gpm (170.3 l/h) Flow Control
  • F5 1.0 gpm (227.1 l/h) Flow Control
Packaging Data:
  • Sprinkler can be ordered assembled from the factory or a la carte for ultimate field flexibility
  • Assembled sprinklers can be ordered in increments of 1; case quantity of 400
  • Sprinkler parts vary in order increment and case quantity; Nozzles: Order increment of 200; case quantity of 1,600.  Brake Assemblies: Order increment of 200; case quantity of 4,000. Bodies: Order increment of 1; case quantity of 400
  • Accessories and mounting options vary in order increment; call for details

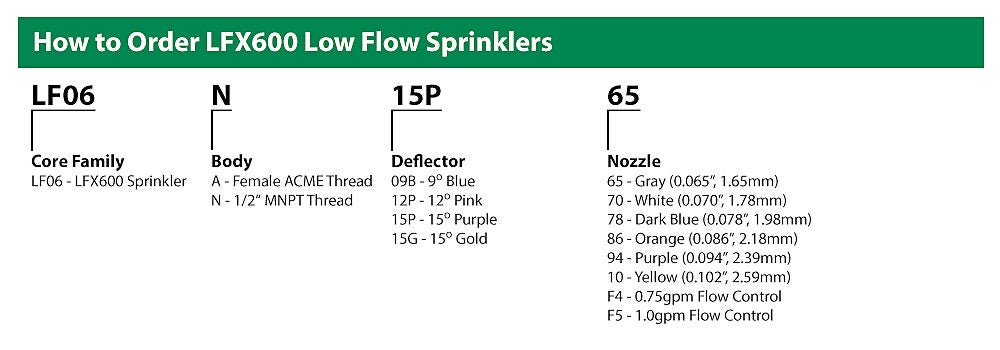

How To Specify LFX600
