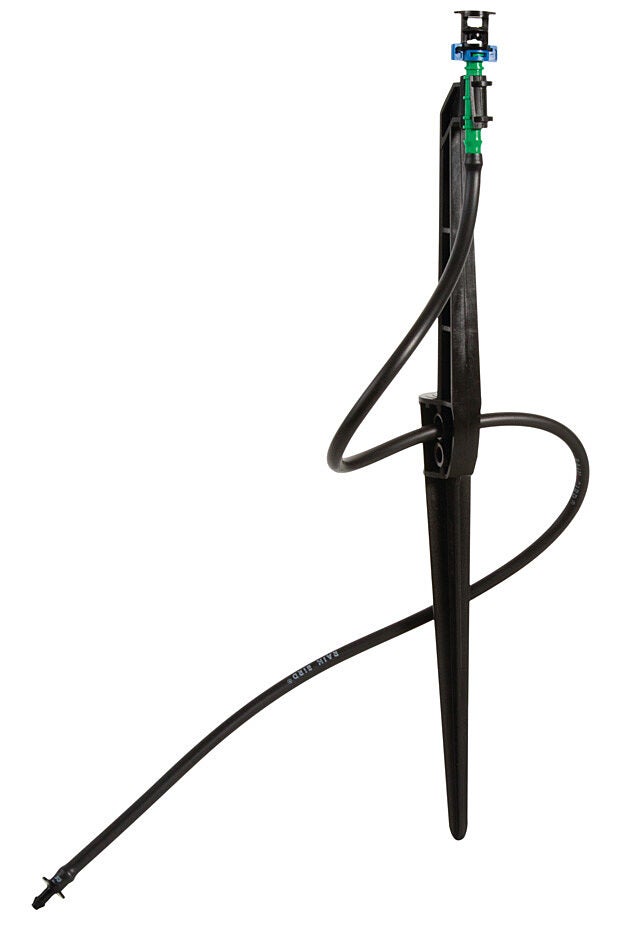

Micro-Quick Sprays
Micro-Quick Sprays
Flow rate: 3.7 to 30.6 gph (13.8 to 115.7 l/h)
The unique design of the Rain Bird® micro spray deflectors allows the system to grow along with the maturation of the crop. Micro-Quick™ Sprays help provide for a more efficient use of water, chemicals, and energy.
- No tools required for assembly, disassembly, or cleaning maintenance with easy snap fit nozzles and deflectors

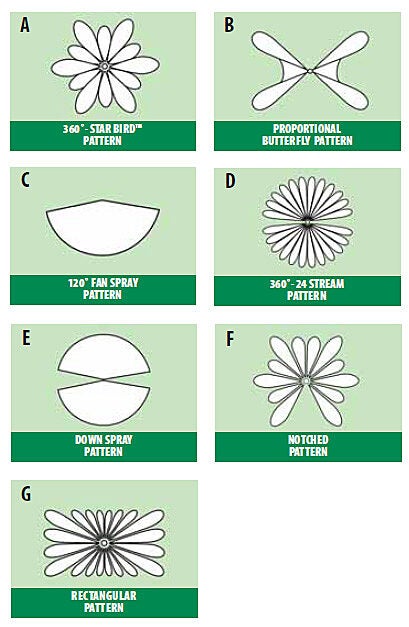

- Interchangeable nozzles and deflectors to change flow rates or spray patterns as needed
- Color-coded nozzles for easy identification
- Less maintenance required with no moving parts
- Constructed with Ultraviolet (UV) stabilized resin to protect from sun damage and chemicals

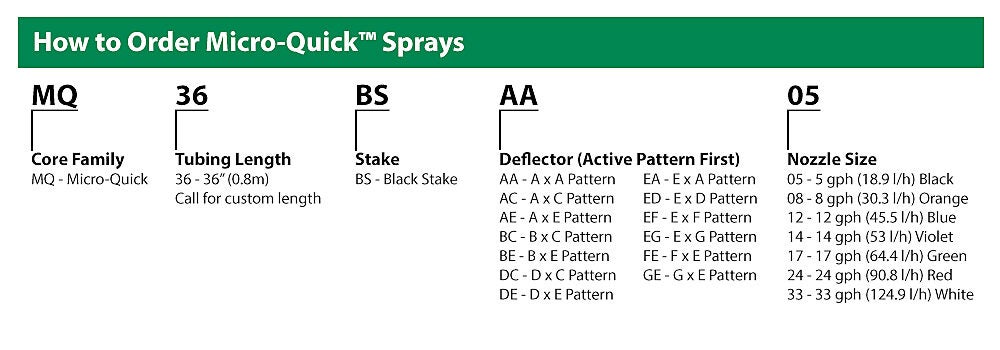

- Order preassembled from the factory or as individual components for field customization
Operating Pressure
- 10 to 30 psi (0.69 to 2.07 bar)
Flow Range
- 3.7 to 30.6 gph (13.8 to 115.7 l/h)
Wetted Diameter Range
- 3 to 28 feet (0.91 to 8.5m)
Filtration
- Recommendation varies by nozzle selection
- Ranges from 80 to 200 mesh (74 to 180 micron)
Distribution/Transfer Tubing
- Standard length in assembly: 36” (0.91 m), call for custom length options
- Tubing Size: OD: 0.25” (6.4 mm), ID: 0.17” (4.3 mm), wall thickness: 0.04” (1mm)
Packaging Data
- Assembled sprays can be ordered in increments of 1; case quantity of 400
- Nozzles and deflectors can be ordered in increments of 200 pieces; case quantity of nozzles is 3,000, case quantity of deflectors is 5,000
- Stakes can be ordered in increments of 1; case quantity of 130
- Transfer assemblies can be ordered in increments of 100; case quantity of 700
