LF1200 Low Flow Sprinkler

Operating Pressure:

• 25 to 60 psi (1.7 to 4.2 bar)

Flow Range:

• 0.97 to 2.53 gpm (220 to 575 l/h)

Throw Radius Range:

• 22 to 37 feet (6.6 to 11.1 m)

Stream Height Range:

• 14 to 72 in (35 to 190 cm)

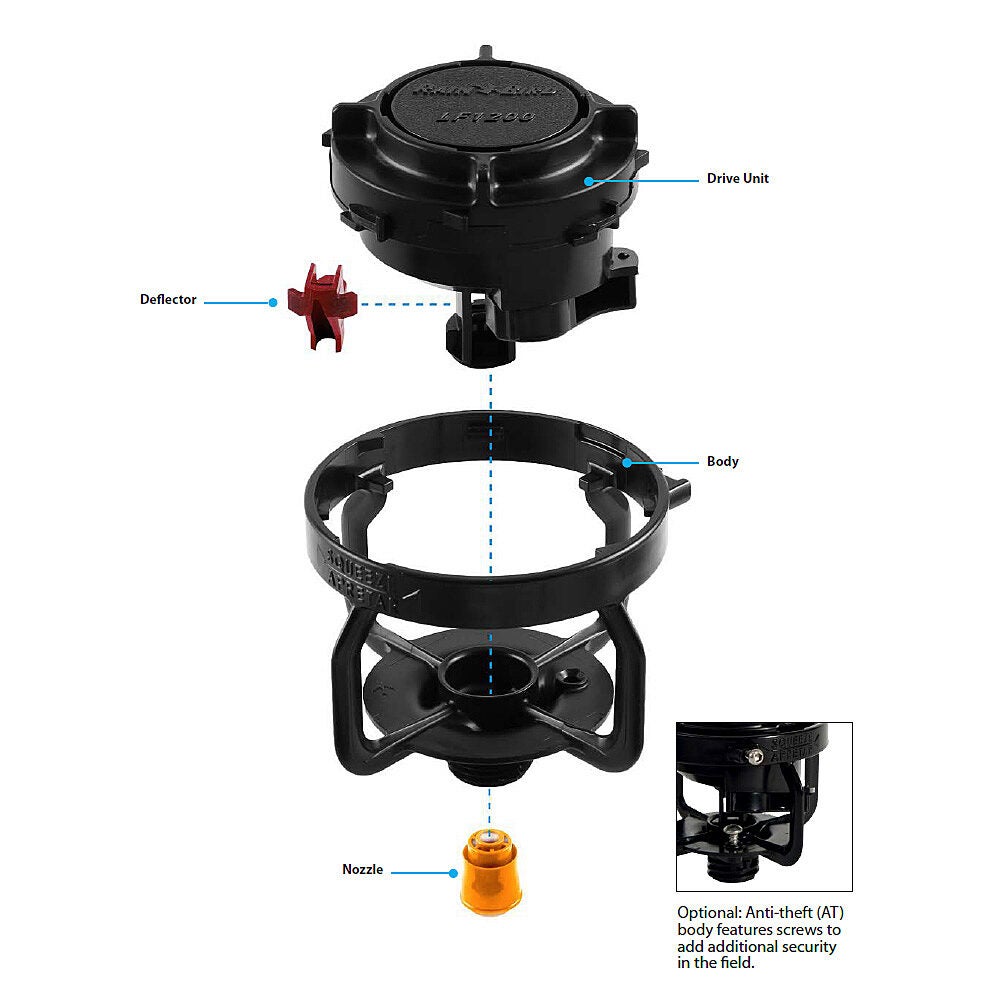

Sprinkler Body Options:

• ½“ (13mm) NPT male pipe thread
• 23mm ACME male thread (requires special adapter)
• Anti-theft bodies available

Deflector Trajectory Outlets:

• 6° Dark Purple
• 10° White
• 12° Cyan Blue
• 12° Pink
• 16° Red
• 17° Powder Blue
• 21° Olive Green

Nozzle Sizes:

• Blue 0.078” (1.98mm, 5/64”)
• Orange 0.086” (2.18mm, 44 drill)
• Purple 0.094” (2.39mm, 3/32”)
• Yellow 0.102” (2.59mm, 38 drill)
• Green 0.109” (2.76mm, 7/64”)
• Tan 0.117” (2.97mm, 30 drill)

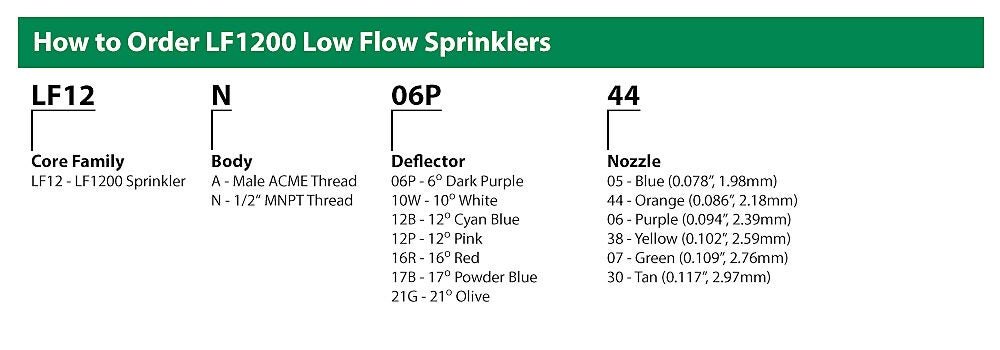

Packaging Data:

• Assembled sprinklers can be ordered in increments of 1; case quantity of 100
• Nozzles and deflectors can be ordered in increments of 200 pieces; case quantity of nozzles is 2,000, case quantity of deflectors is 1,600
• Unassembled Body and Drive Units can be ordered in increments of 1; case quantity of 100

Accessories:

• Adapters available to convert ACME body to ½” or ¾” Male NPT
• Adapters available to convert ACME to female slip including: ½” and ¾” slip or 20mm and 25mm slip
• Edge guard, splash guard, and stream splitter available

---

LF Series Uniformity Pro™ Performance Information:

Uniformity Pro is an online selection tool that helps you pick the best Rain Bird LF™ Series nozzle and deflector combination for your agricultural irrigation needs. Simply enter your spacings and watering requirements.  Within seconds, Uniformity Pro will create a detailed results report with the best distribution uniformity combinations listed first. If you are a planner, designer, or specifier, Uniformity Pro™ can be used in combination with CIT SPACE™ to create single leg profiles and densograms for your proposals and presentations. Launch Uniformity Pro here.
