Multi-Outlet Xeri-Bug

• Pressure compensating design delivers uniform flow throughout a wide pressure range (15 to 50 psi; 1.0 to 3.5 bar)
• Six-outlet emitter supplied with one outlet opened. Simply clip the outlet tips open with snips or clippers for additional operational ports
• Barbed outlets retain 1⁄4" Distribution Tubing (XQ)
• Self-flushing action minimizes clogging
• Durable, UV-resistant color-coded plastic housing

Models: barb inlet x barb outlet

• XB-05-6: Blue, 0.5 gph (1.89 l/h)
• XB-10-6: Black, 1.0 gph (3.79 l/h)
• XB-20-6: Red, 2.0 gph (7.57 l/h)

Models: 1⁄2" FPT inlet x barb outlet

• XBT-05-6: Blue, 0.5 gph (1.89 l/h)
• XBT-10-6: Black, 1.0 gph (3.79 l/h)
• XBT-20-6: Red, 2.0 gph (7.57 l/h)

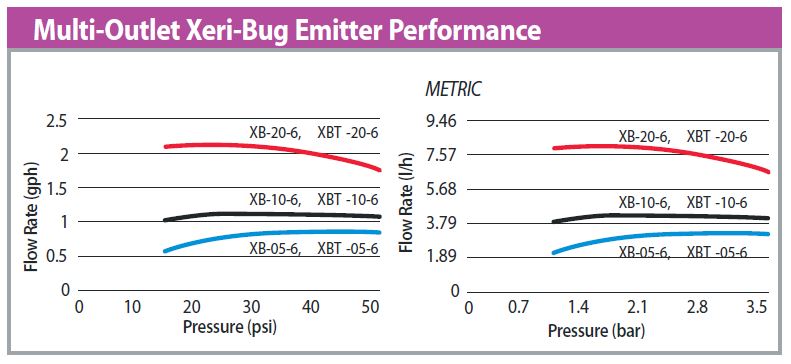

Operating Range

• Flow: 0.5, 1.0 or 2.0 gph (1.89, 3.79 or 7.57 l/h).
• Pressure: 15 to 50 psi (1.0 to 3.5 bar).
• Filtration: 150-mesh (100-microns).
