Plastic Square Drainage Grates
Plastic Square Drainage Grates
Available in 9", 12" & 18" Flat and 9" & 12" Atrium Style

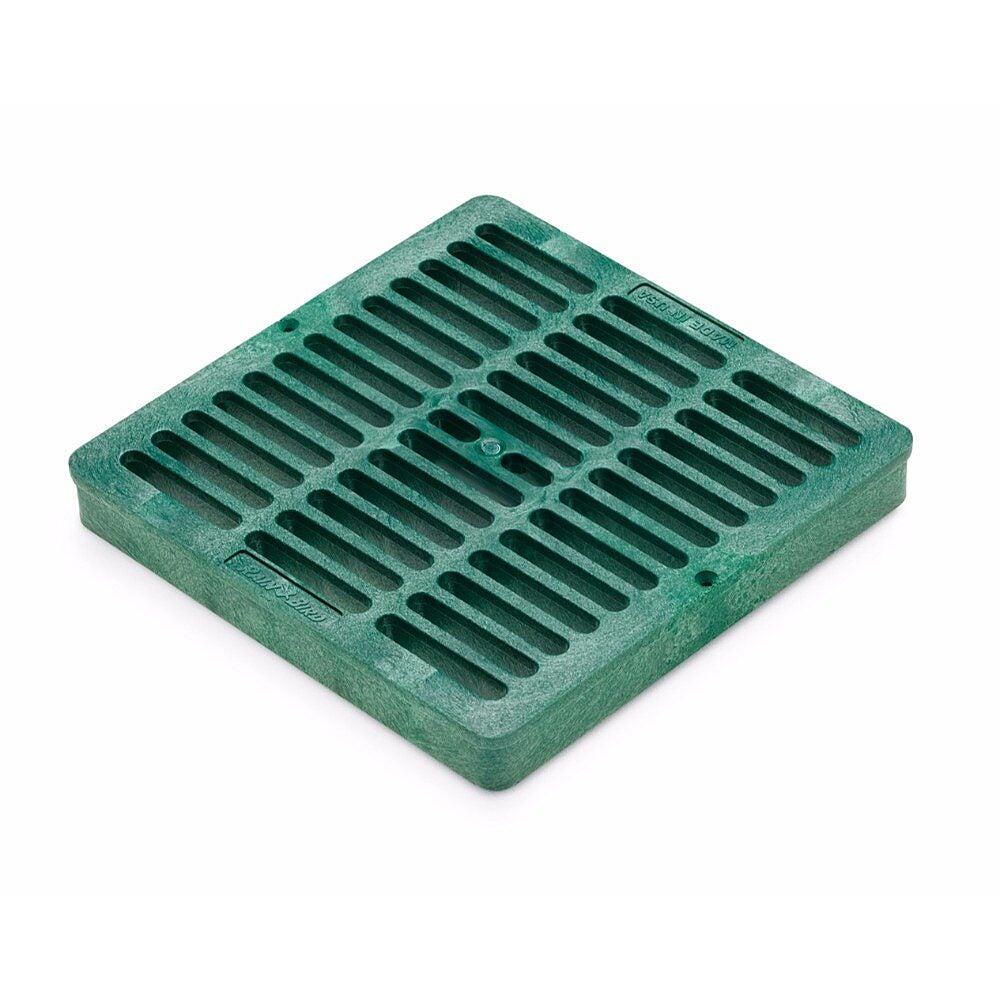

A rugged square grate designed to be used in conjunction with a catch basin, this grate is manufactured from a structurally foamed High Density Polyethylene (HDPE) with a UV inhibitor to reduce sun damage. It has large opening slots for maximum flow while still preventing large debris from entering the drainage system. Typical application would be areas where floating debris would block a flat grate. For safety reasons, and to prevent vandalism or theft, the grate has two holes enabling it to be screwed onto the basin.
- Manufactured from structurally foamed High-Density Polyethylene (HDPE)
- UV stabilized to protect from sun degradation
- Flat and atrium (domed) profiles
- Flat grates available in green and black
- Atrium grates available in green and black
- Fits 9", 12" and 18" Square Catch Basins
- Fits 9" and 12" Square Low-Profile Basins
- Textured anti-skid surface 1
- Load rated for autos and light trucks at speeds less than 20 mph 1, 2
- Includes two screw holes to secure to basin3
- ADA compliant 1
- Made in the USA
1 Flat grate only
2 Maximum load rating based on basin encased in concrete and weight uniformly applied across entire grate surface.
3 Use #6 1.5" long Phillips flat head stainless screws
