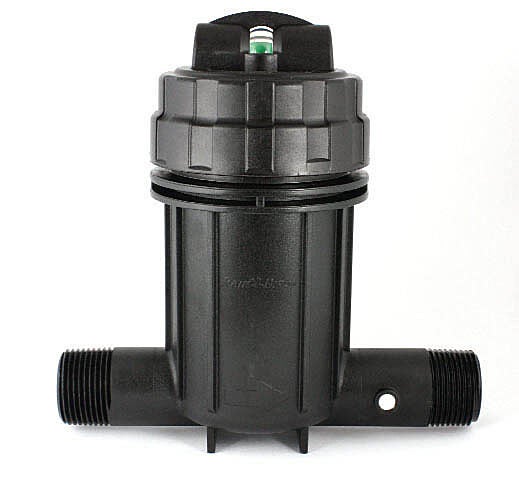

Pressure Regulating Basket Filters and Pressure Regulating Quick-Check Basket Filters

• Reduces maintenance and labor costs - 40% larger filter surface than standard filters means less frequent cleaning
• Provides increased reliability – “No Spill” feature ensures dirt does not fall back into the filter during cleanup operation
• Simplifies installation and maintenance – threaded top with O-ring makes it easy to remove and clean that stainless steel filter screen
• Efficient design – combines filtration and pressure regulation in one compact unit with fewer connections
• Available in 1" model
• Comes pre-assembled with 200 mesh (75 micron) stainless steel screen (other screen sizes available)
• Built-in 40 psi (2,7 bar) pressure regulator
• Also available in Light Commercial Control Zone Kits:
  • XCZ-100-PRBR (without Quick-Check feature)
  • XCZ-100-PRB-LC (without Quick-Check feature)
  • XCZ-PRB-100-COM (with Quick-Check)
  • XCZ-PRB-150-COM (with Quick-Check)

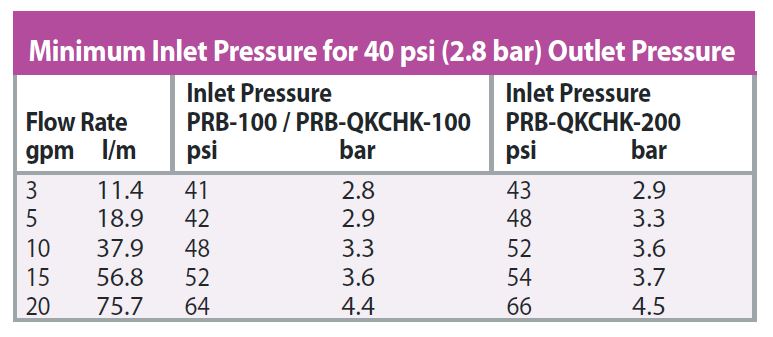

Operating Range

• Flow: 5.0 to 20.0 gpm (18.9 to 75.7 l/m)
• Inlet Pressure: 15 to 150 psi (1,0 to 10,3 bar)
• Regulating Pressure: 40 psi (2,7 bar)
• Filtration: 200 mesh (75 micron) stainless steel
• Temperature: Up to 150º F (66º C)

• PRB-100: 1” Basket Filter with built-in Pressure Regulator (40 psi ) and 200 mesh (75 micron) stainless steel screen
• PRB-QKCHK-100: 1" Basket Filter with built-in Pressure Regulator (40 psi) and 200 mesh (75 micron) stainless steel screen

Replacement Filter Screens

• QKCHK-100M: 100 mesh stainless steel screen, red
• QKCHK-200M: 200 mesh stainless steel screen, white

Replacement Cap

• QKCHKCAP (Complete cap with body O-ring)
