Pressure Regulating Filter (RBY)

Home Pressure Regulating Filter (RBY)

Control Zone Components

Unique, compact unit that works with all valves to create a simple, efficient control zone. Combines filtration and pressure regulation in one piece for protection of downstream components in a low-volume irrigation system



  • Reduces the number of components in a control zone, making it smaller and easier to install. More control zones can fit in one valve box!
  • Combination unit comes with 200 mesh (75 micron) stainless steel reduces the number of connections, making installation easier and faster
  • Static RBY filter regulates pressure to a nominal 30 or 40 psi (2.0 or 2.8 bar) - PR RBY Filter Cap has sealing O-ring and unthreads to provide access to the filter element for easy cleaning
  • 30 or 40 psi pressure regulator is integrated into the filter body
  • Robust body and cap are made of glass-filled polypropylene and provide 150 psi (10.3 bar) pressure rating

  • PRF-075-RBY: ¾" PR RBY Filter
  • PRF-100-RBY: 1" PR RBY Filter
Replacement Screen
  • RBY-200SSMX (200 mesh stainless steel screen)
Operating Range
  • Flow:
    • 3/4" units: 0.2 to 5.0 GPM (0.8 to 18.9 l/m)
    • 1" units: 0.2 to 15.0 GPM (0.8 to 56.8 l/m)
  • Inlet pressure: 20 to 150 psi (1.4 to 10.3 bar)
  • Regulated pressure:
    • 3/4" units: 30 psi (2.1 bar)
    • 1" units: 40 psi (2.8 bar)
  • Filtration: 200 mesh (75 micron)

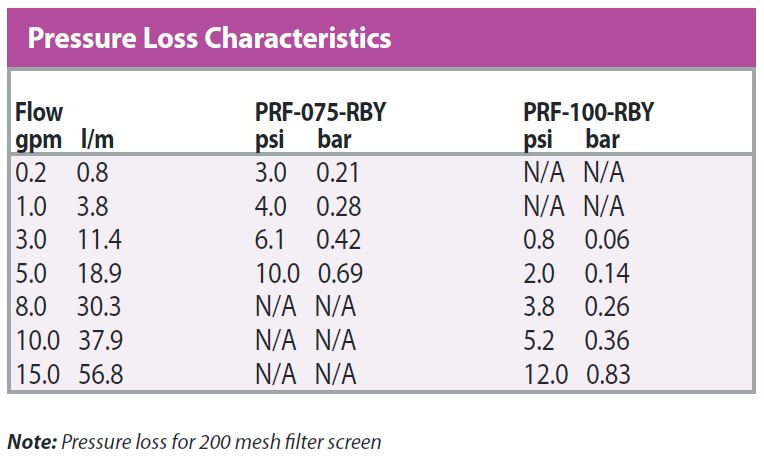

Pressure Loss Chart

In order to supply 40 psi (2.8 bars) outlet pressure, additional pressure is needed at the inlet since there is some pressure loss from water flowing through the kit. The amount of pressure loss depends on the flowrate.
