Round Drainage Catch Basins
Round Drainage Catch Basins
Available in 6" one and two outlet models

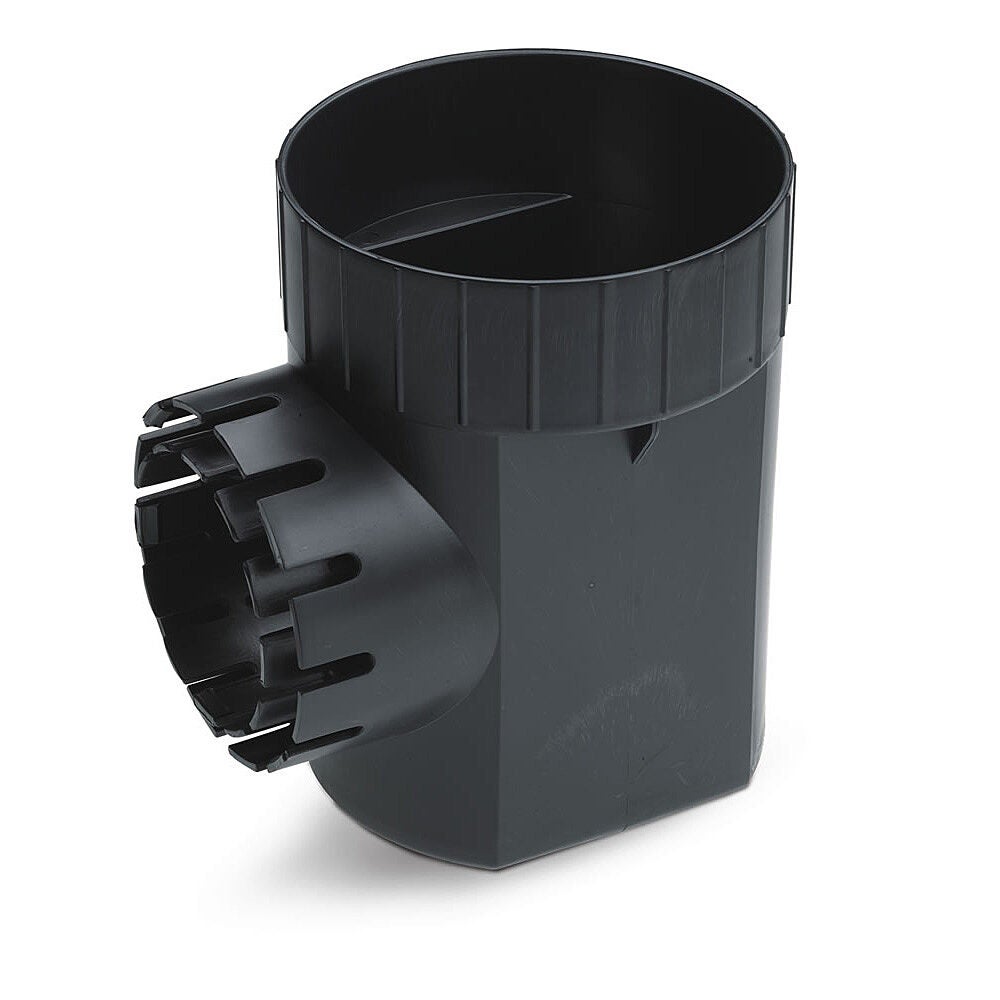

A Round Catch Basin is used to collect and discharge excess water in order to prevent potential damage to landscapes and property. This basin has either one or two universal outlets which can be used with 3" and 4" Sewer & Drain Pipe (ASTM D2729), 3" and 4" Corrugated Pipe, and 3" and 4" Triple Wall Pipe. This basin is designed to accept the 6" Round Flat, 6" Round Atrium, and 7" Square Universal grates, and includes a sump, which allows sediment to settle in the basin to minimize clogging of pipes.
- Manufactured from High-Impact Polystyrene (HIPS)
- UV stabilized to protect from sun degradation
- Available in both one and two outlet models
- Accepts 6" Flat Grates, 6" Atrium Grates and 7" Universal Grates
- Universal outlet(s) used to connect to 3" or 4" Sewer and Drain Pipe (ASTM D2729), 3" or 4" Corrugated Pipe and 3" or 4" Triple Wall Pipe
- Includes a sump to allow sediment to settle in basin to minimize clogging of pipe
- To extend height of basin, use 6" PVC Pipe (ASTM D2729 and ASTM D3034, SDR 35) as a riser
- Made in the USA
| Inlet (Top) Accepts | Outlet (Side) Fits | Capacity | Sump Capacit y |
| 6" Round, 1 or 2 Outlet | |||
| 6" Round Flat and Atrium Grates 7" Universal Square Grates 6" PVC Pipe (ASTM D2729, ASTM D3034, SDR 35) |
3" or 4" Corrugated Pipe 3" or 4" Triple Wall Pipe S & D Pipe (ASTM D2729) |
0.80 gals | 0.20 gals |
