1800-RETRO Spray-to-Drip Retrofit Kit

Simple kit that easily converts a conventional spray zone to a low-volume irrigation zone

Rain Bird® 1800-RETRO is the easiest and fastest way to convert a conventional spray zone to a low-volume irrigation zone. The 1800 Retro internal assembly is easily installed into any existing 1804, 1806, or 1812 spray head bodies to retrofit existing system to Xerigation® products.

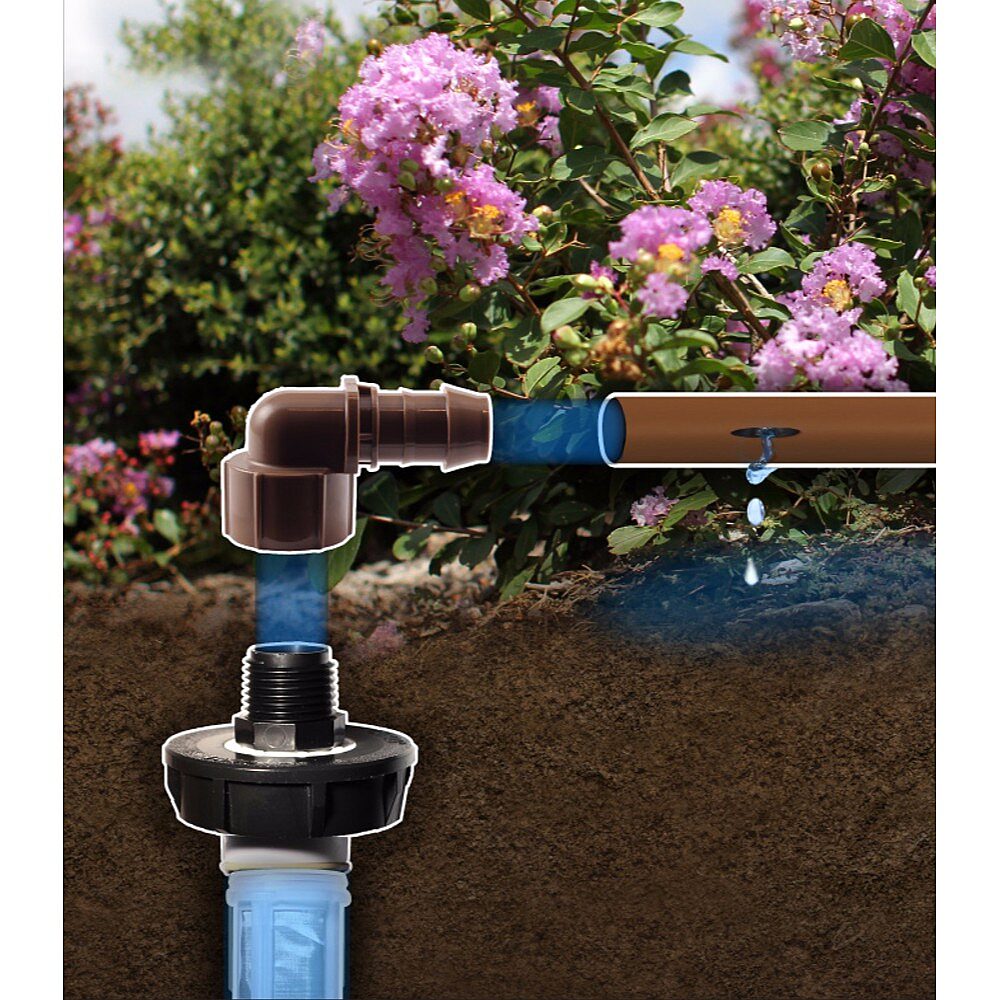

  • Permits convenient conversion to drip tubing when used with barbed adapter
  • Provides 30 psi (2,0 Bars) pressure regulation and a 200-mesh (75 micron) screen that is easily accessible
  • Supports flow rates of 0.5 to 6 gpm
  • Internal assembly drops into any 1804, 1806, or 1812 spray head body to easily retrofit existing system to Xerigation® products
  • Comes with 1 low profile Barb Tee and 1 Elbow Fitting
  • Includes (1) ½” FPT x Elbow Fitting and (1) ½” FPT x Tee Fitting for easy connection to drip tubing
Operating Range
  • Flow: 0.5 to 6 gpm (0.11 to 1.36 l/m)
  • Inlet pressure: 15 to 70 psi (1.0 to 4.8 bar)
  • Regulated pressure: 30 psi (2.1 bar)
  • Filtration: 200 mesh (75 micron)
Dimensions
  • ½" (15/21) female-threaded inlet
  • ½" (15/21) male-threaded swivel outlet
  • Width:
    • Cap: 2.25” (5.70 cm)
    • Body: 1.5” (3.80cm)
Model
  • 1800-RETRO
Replacement Screen
  • RBY-200SSMX (200 mesh stainless steel screen)
