3 Program Battery Operated Irrigation Controller

Commercial Control for Battery-Powered Systems

The TBOS-II battery-operated line of buriable irrigation controllers allows the use of automatic irrigation in challenging areas where AC power is not available. Its water saving programming features maximize water efficiency by letting you build highly-customized programs.

With seven advanced programming features, the TBOS-II™ cuts setup time and eliminates repeat trips to the controller, resulting in water-efficient programs and lower operating expenses.

Advanced Water Management
  • Seasonal Adjust: Automatically adjusts station run times for each month
  • Master Valve: Extra support for stations that require a back-up to minimize water leaks or need extra water pressure
Time-Saving Programming
  • Review Programs: Automatically verifies if the system is correctly programmed
  • Programming Templates: Save commonly-used programs as a template that can be transferred to other controllers
  • Test All Valves: Automatically tests if the system is correctly programmed and wired
  • Contractor Default Program: Save a customized default program that can be automatically restored at a later date
  • Naming Stations: Identify valves and their function without turning on the system programs
Flexible Programming
  • Run-time from 1 minute to 12 hours in 1-minute increments
  • Basic programming includes 3 independent programs with flexible days cycles including custom even, odd, odd-31 and 1-6 day program cycles for maximum flexibility
  •  8 start times per program per day
  • Independent station operation allows simultaneous start times or sequential start times based on system hydraulic capacity
Easy to Use Interface
  • Battery indicator reports battery status in the TBOS Field Transmitter
  • The TBOS field transmitter has a large Liquid Crystal Display (LCD) with self-explanatory function icons. Each function is indicated by an easy-to-understand symbol
  • The 7-key keypad is equipped with a “beep” sound to confirm that a key has been pressed for fast and sure programming
  • One TBOS field transmitter programs an unlimited number of TBOS Control Modules

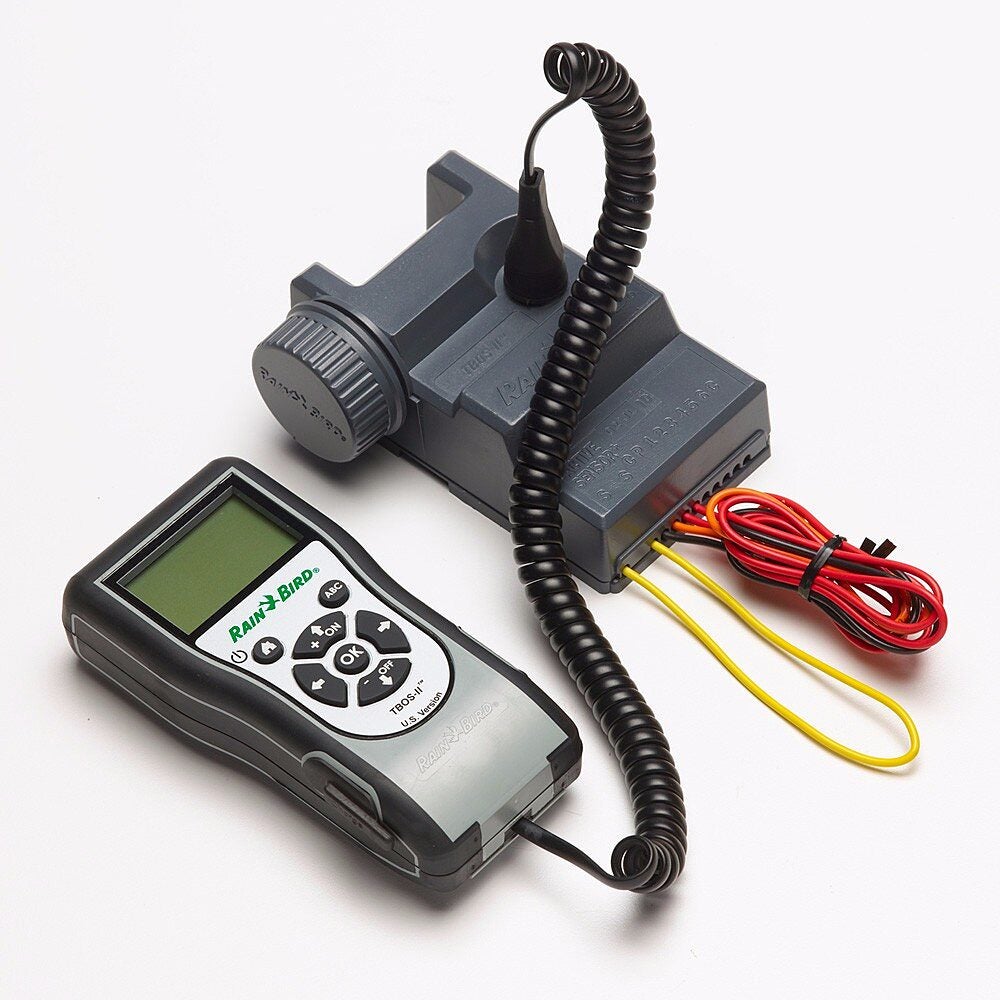

  • Field transmitter and control module have external infrared connectors for easy plug-in
  • It is possible to transmit information even if the module is under water
Valve Compatibility
  • TBOS potted latching solenoid is compatible with all Rain Bird valves in the DV, DVF, ASVF, PGA, PEB, PESB, GB, EFB-CP, BPE and BPES series
  • The TBOS solenoid adapters will adapt the potted latching solenoid for use in retrofit applications with non-Rain Bird valves such as Irritrol® (Hardie/Richdel) and Buckner® valves or Champion® and Superior® valve actuators
Three-year trade warranty
TBOS-II Control Module
  • In order to control a TBOS II Control Module you must use the TBOS II Field Transmitter, TBOS II Control Modules are not compatible with the TBOS I Field Transmitter.
  • Available in 4 models: 1, 2, 4 and 6 stations.
  • Operates one valve per station.
  • Station timing: 1 minute to 12 hours in 1-minute increments with a 365-day calendar. Stations can be assigned to multiple programs.
  • Active sensor connection accommodates Rain Bird® RSD-BEx Rain Sensor
  • Operates with only one 9V alkaline battery (Energizer™ and Duracell™ are recommended) type 6 AM6 (international standard) or 6LR61 (European standard); battery not included.
  • Battery life is approximately one year with a high-quality 9V alkaline battery.
  • IP-68 rated waterproof case for reliable operation under water
  • Control Module Dimensions:
    • Width: 3.8" (9,5 cm)
    • Height: 5.1" (13,0 cm)
    • Depth: 2" (5,3 cm)
    • Weight: 17.64 ounces (500g)
  • Maximum Wire run between the module and solenoid:
    Wire Size (AWG) Maximum Distance
    18 AWG (0.75 mm2) 32 ft (10 m)
    16 AWG (1.5 mm2) 100 ft (30 m)
  • C-Tick approved
TBOS-II Field Transmitter
  • The TBOS II Field Transmitter can operate both TBOS I & II Control Modules
  • Field Transmitter required for programming control module.
  • Field Transmitter Dimensions:
    • Width: 2.8" (7,0 cm)
    • Height: 6.3" (16,0 cm)
    • Depth: 1.2" (3,0 cm)
    • Weight: 8.81 ounces (250g)
  • Operating temperature: 14° to 149° F (-10° to 65°C)
  • C-Tick approved
TBOS-II Potted Latching Solenoid
  • Two 18 gauge (0,75mm2) wires are supplied: 23.6 inches (60 cm) long.
  • Fits Rain Bird valves: DV, DVF, ASVF, PGA, PEB, PESB, GB, EFB-CP, BPE and BPES series.
  • 150 psi (10 bar) maximum operating pressure.
  • Latching Solenoid Dimensions:
    • Width: 1.4" (4,0 cm)
    • Height: 2.4" (6,0 cm)
    • Depth: 1.5" (4,2 cm)
TBOS-II Solenoid Adapters
  • Easy to install.
  • Black adapter for plastic valves allow the TBOS potted latching solenoid to be used with selected Irritrol (Hardie/Richdel) and Buckner valves.
  • Brown adapter for brass valves allow the TBOS potted latching solenoid to be used with selected Champion and Superior valve actuators.
