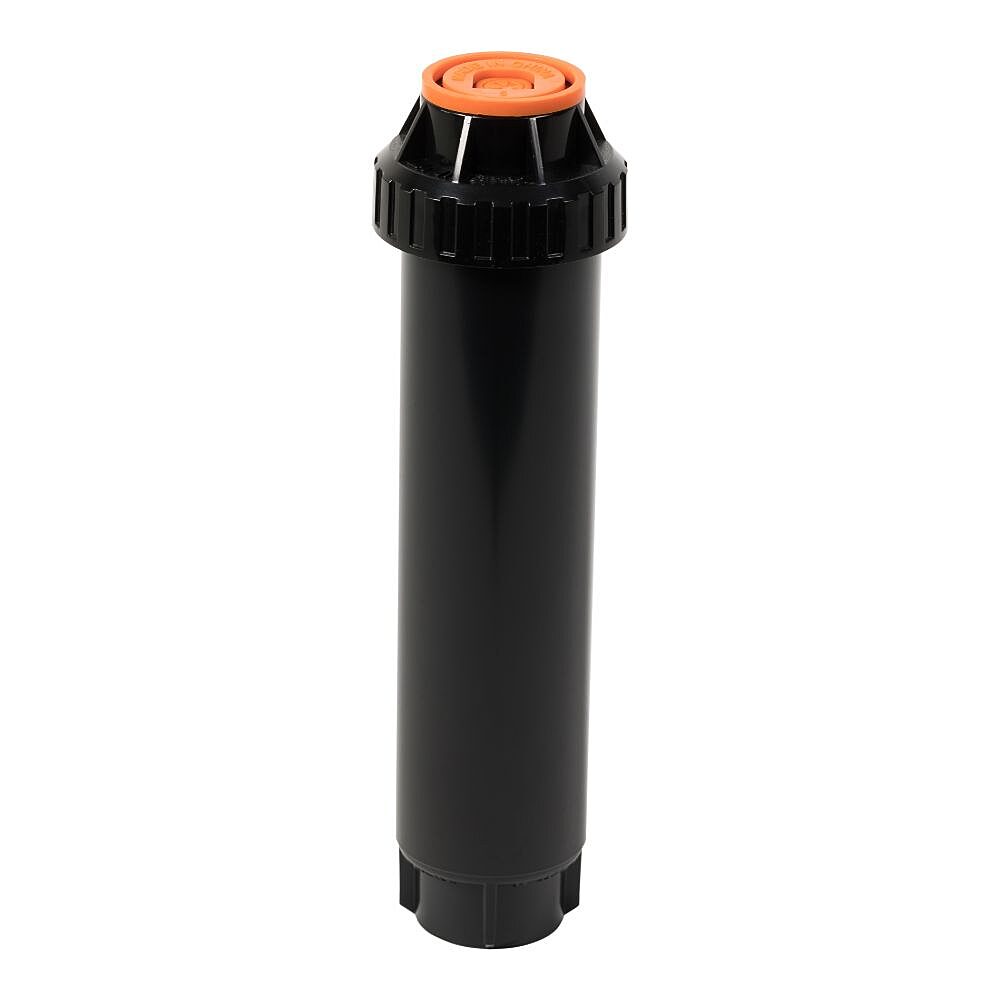

UNI-Spray Pop-up Spray Heads

Compact and reliable spray heads for any application

The UNI-Spray™ accepts all Rain Bird nozzles, including MPR, VAN and U-Series, making it an excellent choice for watering standard and irregular-shaped turf and shrub areas.

For added convenience, these reliable, compact spray heads can be shipped with or without pre-installed Variable Arc Nozzles (VANs) or High Efficiency Variable Arc Nozzles (HE-VAN) that are adjustable from 0° to 360° full-circle operation, saving hours of installation time, effort, and money.

Features
Specifications
Models
Manuals & Literature

Small exposed cover makes the unit virtually invisible for more attractive landscapes
Constructed of durable materials including corrosion resistant stainless steel, assuring long product life even in high pressure or surge conditions
Pressure-activated wiper seal prevents excessive flow-by and water waste and keeps debris from entering upon retraction
Two-piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
Three-year trade warranty

Flow-by: 0 at 10 psi (0.75 bar) or greater; 0.20 gpm (0.04 m³/h; 0.60 l/m) otherwise Dimensions: 1/2" (15/21) NPT female threaded inlet Body Height: 5 7/8" (14.9 cm) Exposed Surface Diameter: 1 1/4" (3.2 cm)

Operating Range (for pre-installed nozzle choices)

Spacing:
- 8' HE-VAN Series: 6 to 8 feet (1.8 to 2.4m)
- 10' VAN and 10' HE-VAN Series: 8 to 10 feet (2.4 to 3.0m)
- 12' VAN and 12' HE-VAN Series: 9 to 12 feet (2.7 to 3.7m)
- 15' VAN and 15' HE-VAN Series: 12 to 15 feet (3.7 to 4.6m)
- 18' VAN Series: 14 to 18 feet (4.3 to 5.5m)
Pressure: 15 to 70 psi (1.0 to 4.8 bar)
Optimum pressure: 30 psi (2.1 bar)
Adjustable nozzle arc range: 0° - 360°
