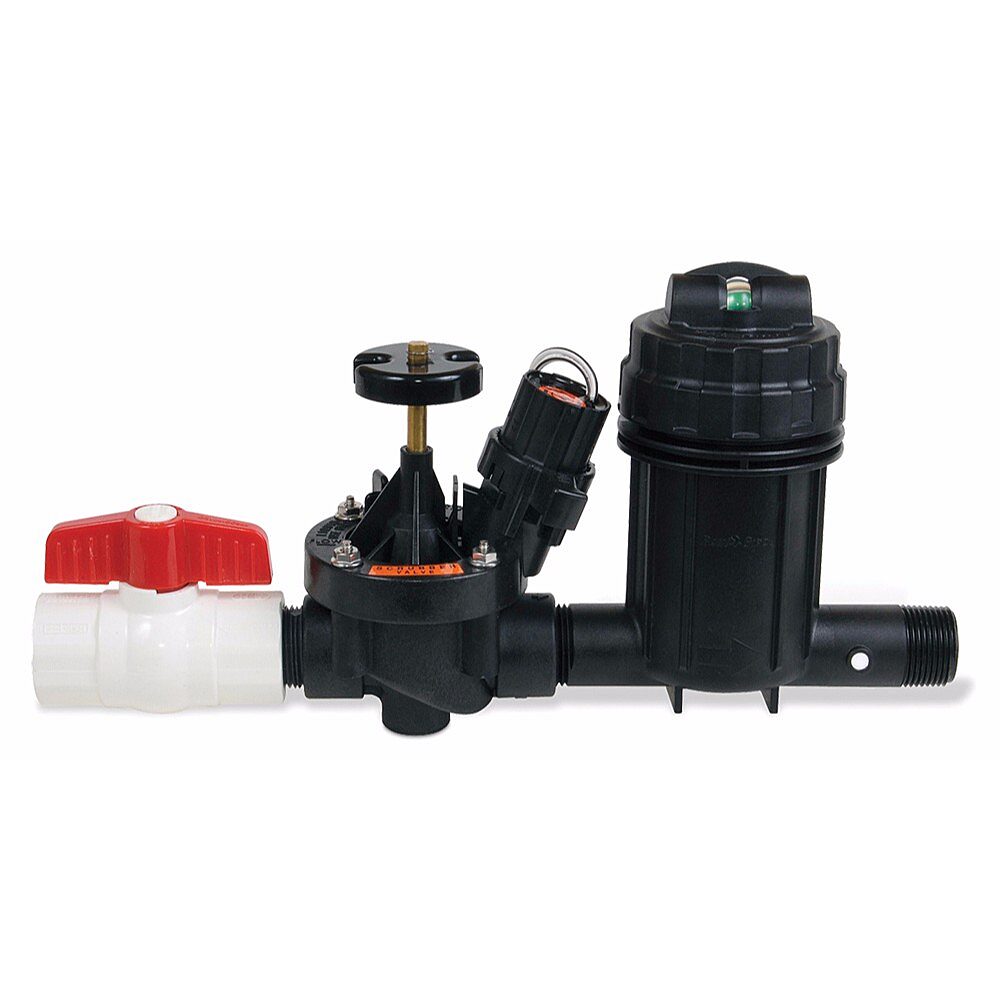

Wide Flow Commercial Control Zone Kit with Scrubber Valve and Pressure Regulating Basket Filter
Commercial Wide Flow: 0.3-20 gpm
Rain Bird Control Zone Kits provide all of the components necessary for on/off control, filtration, and pressure regulation in a single package, making them simple to order and easy to install.
- Complete kit is the simplest, smallest and most reliable Control Zone Kit for commercial applications between 0.3 and 20 gpm (1.1 and 76 l/m)
- Includes the reliable, proven PESB Valve which provides patented scrubbing action, making this kit ideal for commercial dirty water applications
- Includes the Pressure Regulating, Quick-Check Basket Filter that has a clear indicator which goes from green to red, telling you when to clean the filter. This reduces maintenance and takes the guesswork out of cleaning the filter. In addition, the threaded top makes it easy to remove and clean the stainless steel screen
- Basket Filter and Pressure Regulator have been combined for one smaller Pressure Regulating, Quick-Check Basket filter that is 24% smaller than the previous unit

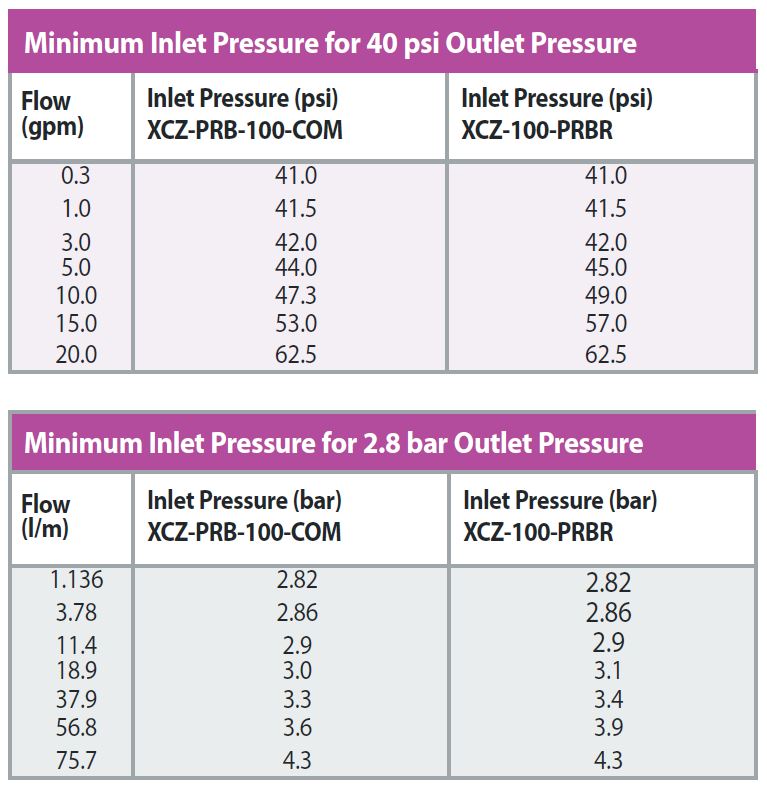

Operating Range
- Flow: 0.3 to 20.0 GPM (1.13 to 75.7 l/m)
- Inlet Pressure: 15 to 150 psi (1.0 to 10.3 bar)
- Regulated Pressure: 40 psi (2.8 bar)
- Filtration: 200 mesh (75 micron)
- Temperature: Up to 150° F (66° C)
Replacement Screens
- QKCHK100M (100 mesh stainless steel screen)
- QKCHK200M (200 mesh stainless steel screen)
Replacement Cap
- QKCHKCAP (Complete cap with body o-ring)
XCZ-100-PRB-COM
1" Ball Valve with 1" PESB Valve and 1" Pressure Regulating (40 psi), Basket Filter
XCZ-100-PRBR
1 in. PESB-R Valve and 1 in. Pressure Regulating (40 psi) Basket Filter
QKCHK-100M
100 mesh stainless steel replacement screen,
red
QKCHK-200M
200 mesh stainless steel replacement screen,
white
