High Flow Commercial Zone Kit with 2 Pressure Regulating Basket Filters

Commercial High Flow: 15-40 gpm

Rain Bird Control Zone Kits provide all of the components necessary for on/off control, filtration, and pressure regulation in a single package, making them simple to order and easy to install.

  • Highest flow Control Zone Kit on the market for large, commercial drip zones 15.0 to 40.0 gpm (56,8 to 151,4 l/m)
  • Includes the reliable, proven 1½" PESB Valve which provides patented scrubbing action, making this kit ideal for commercial dirty water applications
  • Includes 2 Pressure Regulating, Quick-Check Basket Filters that have a clear indicator which goes from green to red, telling you when to clean the filter. This reduces maintenance and takes the guesswork out of cleaning the filter. In addition, the threaded top makes it easy to remove and clean the stainless steel screen
  • Basket Filter and Pressure Regulator have been combined for one smaller Pressure Regulating, Quick-Check Basket filter that is 22% smaller than the previous unit
  • Comes partially assembled for convenience and ease of installation

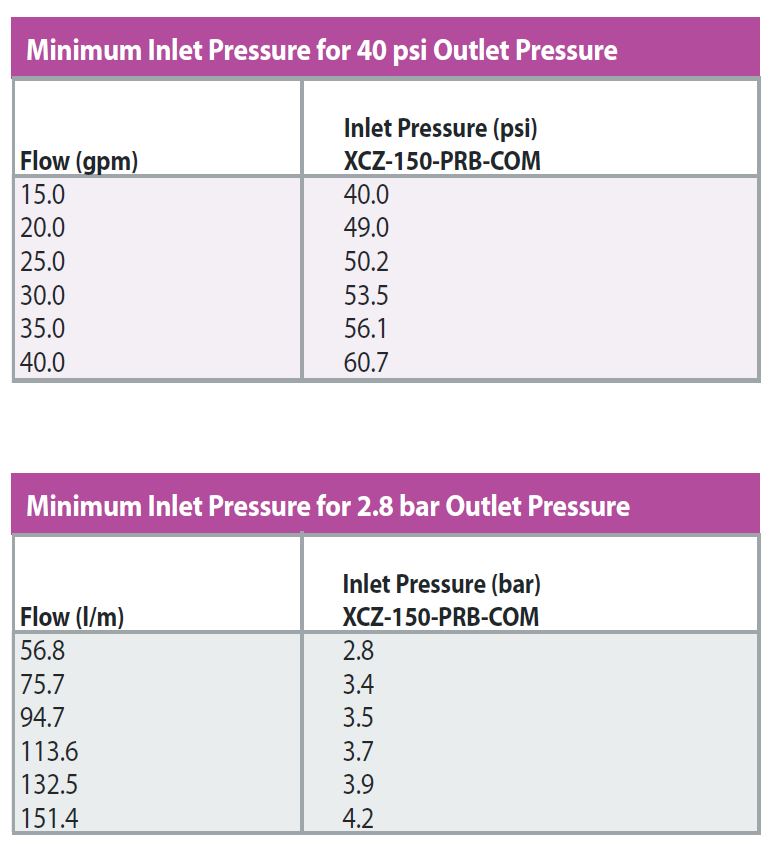

Operating Range
  • Flow: 15.0 to 40.0 gpm (56,8 to 151,4 l/m)
  • Inlet Pressure: 20 to 150 psi (1,4 to 10,3 bar)
  • Regulating Pressure: 40 psi (2,7 bar)
  • Filtration: 200 mesh (75 micron) stainless steel
  • Temperature: Up to 150º F (66º C)
XCZ-150-PRB-COM
XCZ-150-PRB-COM
1 1/2" PESB Valve with two 1" Pressure Regulating (40 psi), Basket Filters
QKCHK-100M filter screen
QKCHK-100M
100 mesh stainless steel replacement screen, red
QKCHK-200M filter screen
QKCHK-200M
200 mesh stainless steel replacement screen, white
QKCHK-100
QKCHK-100
1" Basket Filter with 200 mesh stainless steel screen
