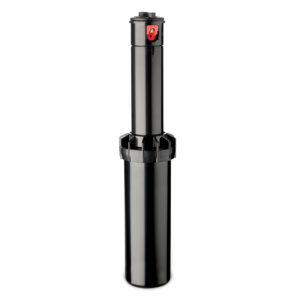

RPS50-CV

The RPS® 50 is a gear-driven, rotary sprinkler, capable of covering an area of 18' to 36' (5,5 to 11 M) radius at nozzle pressure of 30 to 50 PSI (2,1 to 3,4 bar) with a discharge rate of .8 to 3.3 GPM (2,8 to 12,5 LPM).

The RPS® 50 is supplied with five (5) numerically coded interchangeable nozzles. Sprinkler nozzle trajectory is 26°. The sprinkler has a stainless steel radius adjustment screw and has arc adjustment from 40° to 360°.

Check Valve – Prevents low head drainage.

When considering the RPS® 50 gear driven rotor, think water efficiency. Designed for smaller areas, it is now available with a wide selection of nozzles and brings flexibility to system design.

FEATURES AND BENEFITS:

• Right Position Start – Rotor rotates counterclockwise from fixed right start position.
• Time Proven Patented Reversing Mechanism – Assures continuous reverse and return…over a 35 year history.
• Ratcheting Riser – Allows for easy adjustment of your right starting position with a simple turn of the riser.
• Rubber Cover – Seals out dirt and increases product durability.
• Wide Selction of Nozzles – Provides flexibility in system design.

SPECIFICATIONS:

• Inlet: 1/2" (1,3 cm ) Threaded NPT
• Arc Adjustment Range: 40° – 360°
• Flow Range: .8 – 3.3 GPM (2,8 – 12,5 LPM)
• Pressure Rating: 20 – 70 PSI (1,4 – 4,8 bar)
• Precipitation Rate: .26 – .60 in/hr (6,6 – 15,24 mm/hr) (depending on spacing and nozzle used)
• Overall Height (Popped Down): 6" (15,2 cm)
• Recommended Spacing: 17' – 34' (5,2 – 10,4 m)
• Radius: 18' – 36' (5,5 – 11 m)
• Nozzle Trajectory: 25°
• Riser Height: 4" (10,2 cm)
