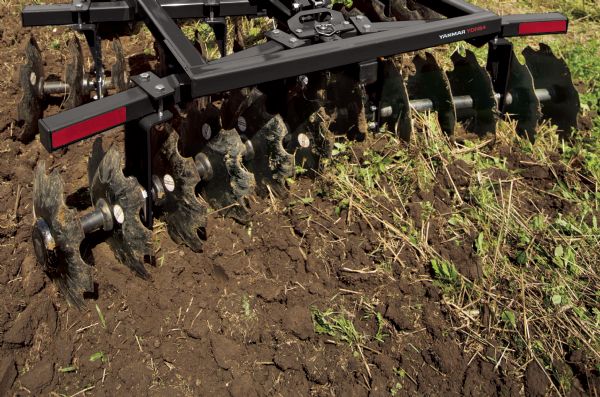

Yanmar Disc Harrows

Big farm tillage technology fit for your compact tractor. From primary tillage, gardening and food plots to firebreaks and weed control, there’s no faster way to make you and your tractor more productive.
MODEL YDH48N YDH64N YDH80N YDH800N
DUTY Standard Standard Standard Medium
Tractor PTO HP <35 HP 25-45 HP 35-55 HP 45-75 HP
Hitch Cat. / Type Cat 1, Limited Cat 1, Cat 0 optional Cat 1 Cat 1 Cat 1 & 2
Approximate Weight (lbs.) 390 508 590 845
Quick Hitch Compatible Yes Yes Yes Yes
Width (in.) 48" 64" 80" 80"
Disc Blade Type Notched All Notched or Smooth & Notched All Notched or Smooth & Notched All Notched or Smooth & Notched
Disc Diameter 16" 18" 18" 20"
Disc Spacing (in.) 7.5" 9" front, 7.5" rear 9" front, 7.5" rear 9" front, 7.5" rear
Gang Axle Diameter (in.) 1" square 1" square 1" square 1 1/8" square
Frame 3"x3" tube & angle 3"x3" tube & angle 3"x3" tube & channel 3"x3" tube
MODEL YDH960N
DUTY Medium
Tractor PTO HP 55-85 HP
Hitch Cat. / Type Cat 1 & 2
Approximate Weight (lbs.) 960
Quick Hitch Compatible Yes
Width (in.) 96"
Disc Blade Type All Notched or Smooth & Notched
Disc Diameter 20"
Disc Spacing (in.) 9" front, 7.5" rear
Gang Axle Diameter (in.) 1 1/8" square
Frame 3"x3" tube
