Rotary Tiller

Home Rotary Tiller

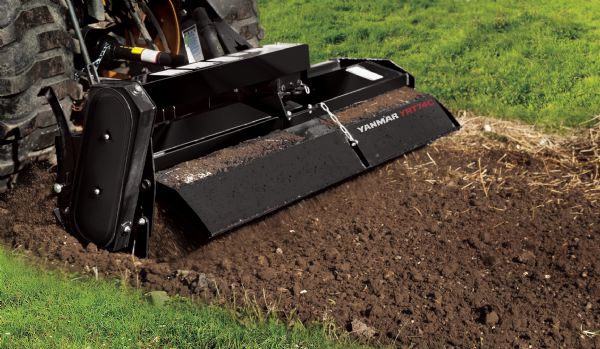

Yanmar Rotary Tiller

Go from waste ground to mellow-soiled garden in a couple of passes. Durable rotary tillers on your compact tractor handle whatever planting, gardening and landscaping challenges you tackle.
MODEL YRT42B YRT48RB YRT600R YRT60RB
DUTY Standard Standard Standard Standard
Tractor PTO HP up to 30 HP up to 35 HP 20-45 HP 20-40 HP
Hitch Cat. / Type Limited Cat 1 & Cat 1 Limited Cat 1 & Cat 1 Cat 1 Cat 1
Approximate Weight (lbs.) 481 505 597/604 574
Quick Hitch Compatible Yes Yes Yes Yes
Drive Type Gearbox Gearbox #80 Chain Gearbox
Width (in.) 51" 57" 67" 69"
Working Width (in.) 41" 47" 60" 59"
Offset 3" Left 3" Left 15.5" Left 2.25" Left
Maximum Tilling Depth (in.) 7" 7" 7.5" 7"
No. of Total Tines / Flanges 20 / 5 24 / 6 42 / 7 28 / 7
No. of Tines per Flange 4 C-Type 4 C-Type 6 C-Type (4 optional) 4 C-Type
Rotor Speed 210 rpm 210 rpm 240 rpm 210 rpm
PTO Driveline Protection Slip Clutch Slip Clutch Slip Clutch
Gearbox Housing Heavy-Duty Cast Iron Heavy-Duty Cast Iron Heavy-Duty Cast Iron Heavy-Duty Cast Iron
Gearbox Drain Plug Yes Yes Yes Yes
MODEL YRT680R YRT740R
DUTY Standard Standard
Tractor PTO HP 20-45 HP 20-45 HP
Hitch Cat. / Type Cat 1 Cat 1
Approximate Weight (lbs.) 634/641 665/672
Quick Hitch Compatible Yes Yes
Drive Type #80 Chain #80 Chain
Width (in.) 75" 81"
Working Width (in.) 68" 74"
Offset 19.5" Left 22.5" Left
Maximum Tilling Depth (in.) 7.5" 7.5"
No. of Total Tines / Flanges 48 / 8 54 / 9
No. of Tines per Flange 6 C-Type (4 optional) 6 C-Type (4 optional)
Rotor Speed 240 rpm 240 rpm
Gearbox Housing Heavy-Duty Cast Iron Heavy-Duty Cast Iron
Gearbox Drain Plug Yes Yes
